7 Advantages of IRONCAD

7 Advantages of IRONCAD

7 Advantages of IRONCAD

IRONCAD has a variety of unique features that will be useful for your design.

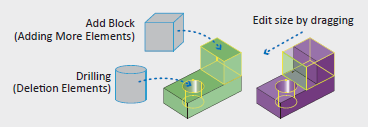

1. DIRECT MODELING

Modeling a three-dimensional shape by drag and drop. Sketching is unnecessary if it is a device or jig that can be formed by combining simple shapes. The work progresses very quickly.

2. NO CONSTRAINT IS REQUIRED FOR ASSEMBLY WORK

Placement by using TriBall which is an original tool. Assembly grouping with one button after placement. Since only the necessary part is constrained, trouble caused by constraint error is nothing.

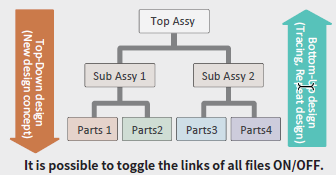

3. EASY TOP-DOWN DESIGN

Since there is no distinction between parts/assembly file extensions, assembly concept can be created with one file. When disassembling, separate files for each part. You can create a 3D scheme with the same thought flow as 2D.

4. LARGE-SCALE ASSEMBLY IS LIGHT

Performance is good even for large-scale data with hundreds of thousands or more parts. Quick responses in editng. Both large-scale assembly and surface modeling are compatble.

5. DATA COMPATIBILITY IS EXCELLENT

IRONCAD has two kernels, ACIS and Parasolid. Even when switching kernels or mixing, data conversion errors are decreasing.

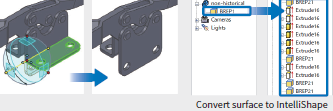

6. INTERMEDIATE FILES CAN BE EDITED

Corresponds to both historical and non-historical modeling. Data without history can be edited freely. CAD data from other companies can be fully utlized.

7. DWG COMPATIBLE 2D CADIS INCLUDED.

Easy to create projecton drawing by automatc linkage between 3D and 2D. Can be used as independent 2D CAD. Can be used DWG file you already have.
