Keyshot User Interface

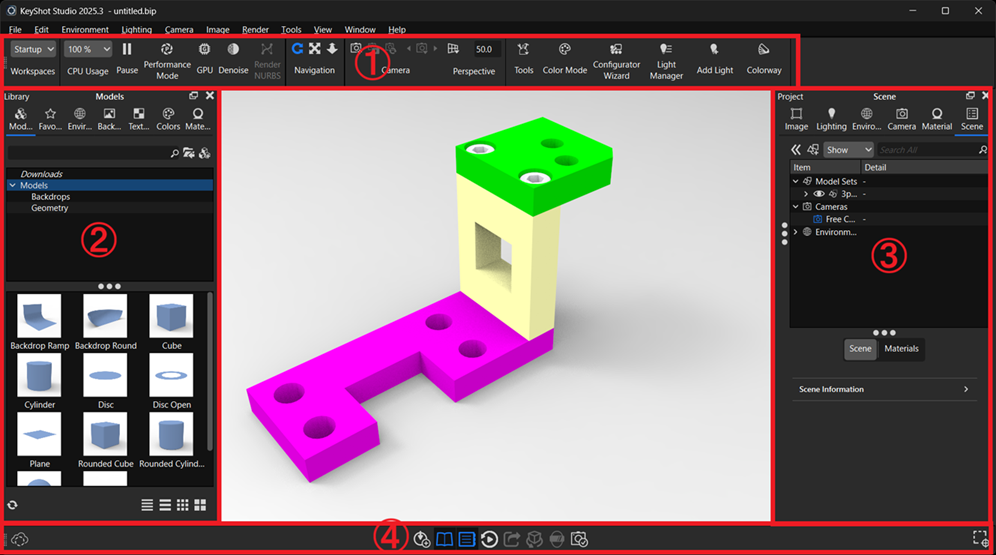

KeyShot User Interface

1. Ribbon

The Ribbon contains commands for basic operations and settings commonly used in KeyShot, such as moving geometry, assigning materials, adjusting camera settings, and configuring rendering performance.

2. Library Window

The Library window contains various materials, colors, textures, and environments included with KeyShot.

Drag and drop the desired materials or other library items onto the model imported from IRONCAD.

※ This is the first step to perform after importing the model.

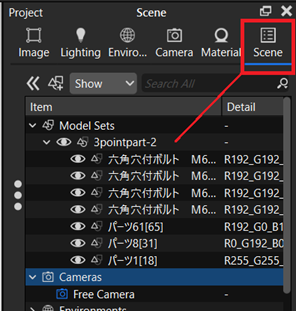

3. Project Window

The Project window allows you to adjust the properties of the materials assigned in Step 2. You can also view and manage the tree structure of the model imported from IRONCAD in the Scene tab.

4. Toolbar

The Toolbar provides commands for showing or hiding windows and rendering the model.
