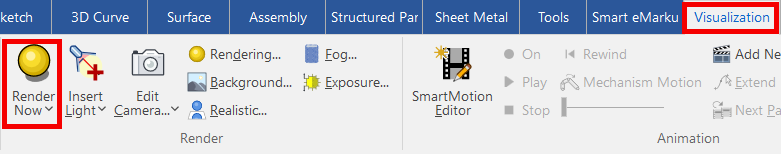

Capturing an Image with [Render Now]

This section explains how to use the [Render Now] function.
It allows you to display the current 3D view in a separate window and save it as an image.

If the image quality is not satisfactory, please use:

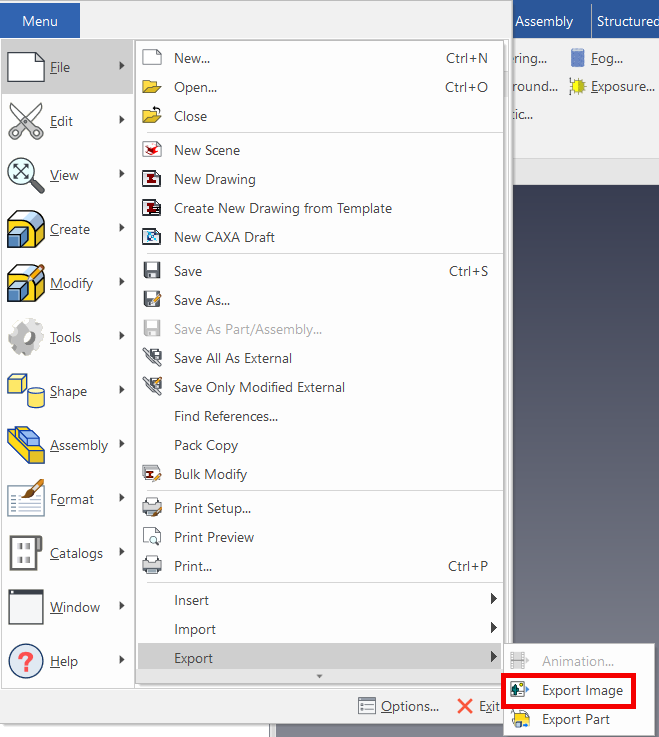

[Menu] → [File] → [Export] → [Export Image] for higher quality output.

Please refer to the video below.
