Changing the Bend Angle for Specific Bends Created from the Catalog

Changing the Bend Angle for Specific Bends Created from the Catalog

This section explains how to modify the bend angles of sheet metal parts created using Stock and Bend from the sheet metal catalog.

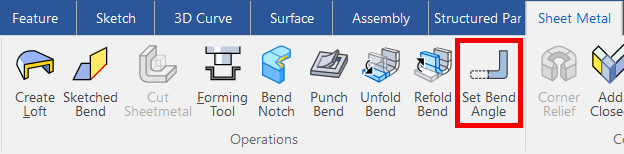

With the [Set Bend Angle] command, you can individually change the bend angles later for multiple bends created from the catalog’s [Bend] feature.



Please refer to the video below.

IC-129
