3D file linked to the projection map(.Check/change the ics.

3D file linked to the projection map(.Check/change the ics.

This section explains how to check or change the 3D file (.ics) that is linked to a projected drawing in CAXA Draft.

Checking the Linked File

[1] Open the drawing file (.exb) in CAXA Draft.

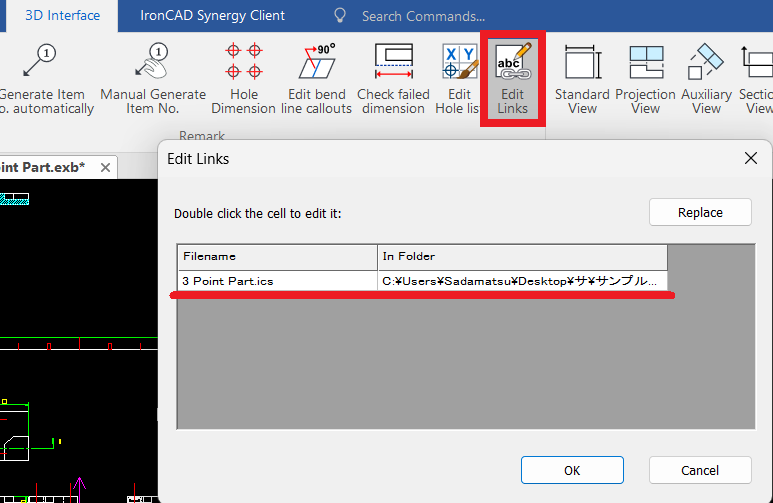

[2] Click [Edit Links] in the [3D Interface] tab.



[3] The ICS file currently used in CAXA Draft will be displayed in the [Filename] field.

Changing the Linked File

(Follow steps 1 to 3 above)
[4] Double-click the string shown in the [Filename] field or [In Folder] field.

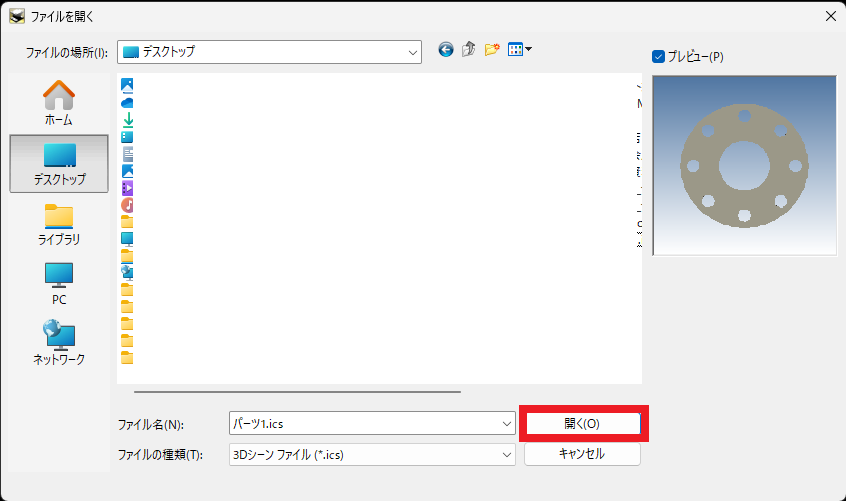

[5] Select the desired ICS file and click [Open].

[6] The drawing will be updated accordingly.
Warning
If the original drawing contains dimensions, they may become invalid after updating the linked file.
Please recreate the dimensions as needed.
