Create a Bent Round Pipe (Rod) Shape

Create a Bent Round Pipe (Rod) Shape

This section explains how to create the shape of a bent round pipe or round rod.

Procedure:

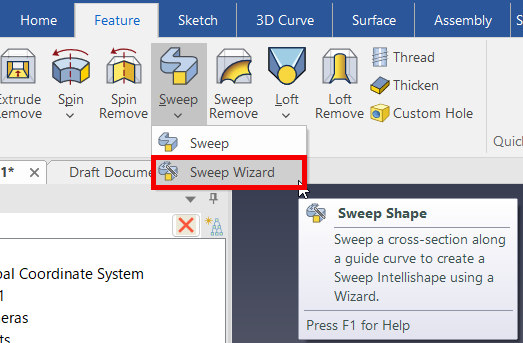

[1] Click [Sweep Wizard] in the [Feature] tab.

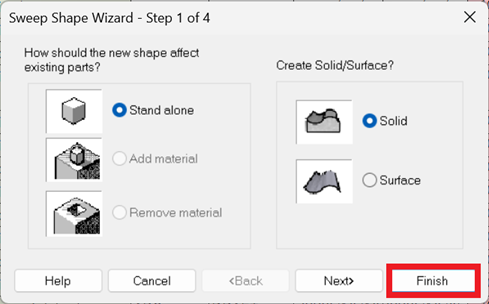

Click [Finish].

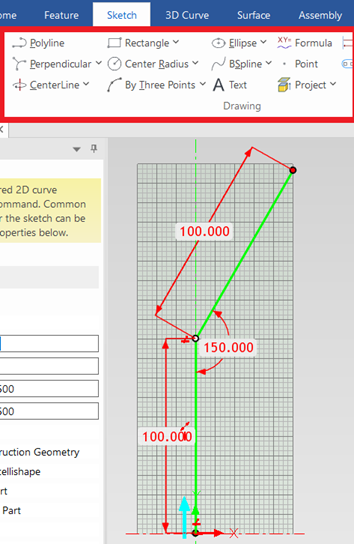

[2] Create the guideline for the pipe using sketch commands.

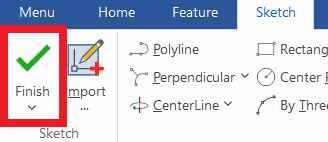

Click [Finish].

[3] Create a cross-sectional shape.
Click [Finish].

Please refer to the video below.

IC-007
