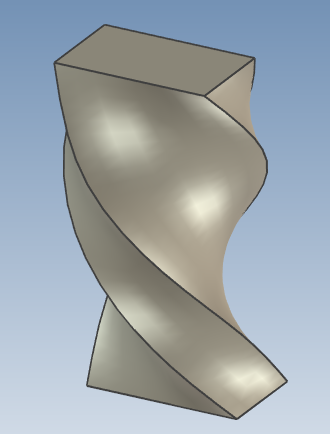

Create a twisted shape

This section explains how to create a twisted shape using [Loft] in the [Feature] tab.

Procedure:

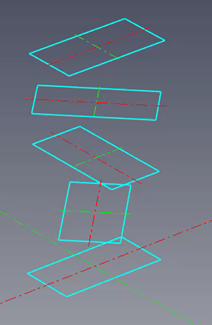

[1] Create Sketch. then copy at the "TriBall".

And set position each sketch.

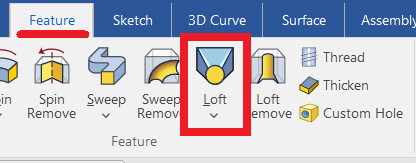

[2] Click [Loft] in the [Feature] tab.

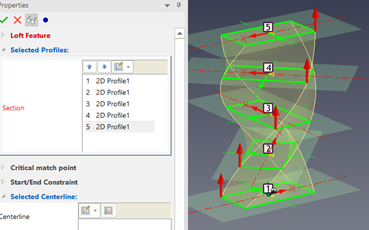

[3] Select all sketches.

[4] Click [OK]. ※Green check

Please refer to the video below.

IC-053
