Creating Angular Continuous Dimension

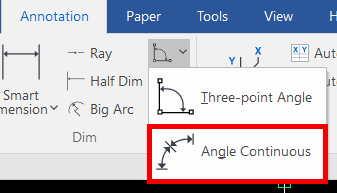

This section explains how to create [Angle Continuous] dimensions.

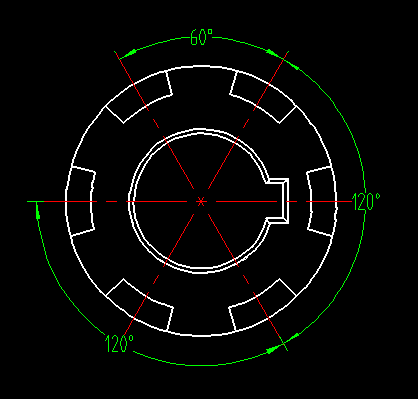

As shown in the figure below, you can create dimensions for a series of continuous angles in a single operation on a plan view or similar drawing.
Please refer to the video below.
CA-030
