Creating Internal Links for Multiple Elements After Placement

Creating Internal Links for Multiple Elements After Placement

Starting with IRONCAD 2024, a new feature has been added that allows you to create internal links for parts or assemblies that are not already linked within the scene.

Procedure:

[1] Select multiple parts or assemblies for which you want to create internal links.
Notes
The internal links will be based on the first selected item.

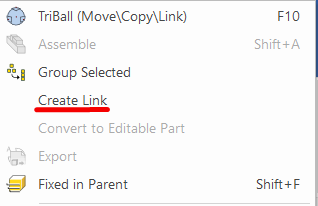

[2] Right-click on the selected elements and click [Create Link] from the context menu.

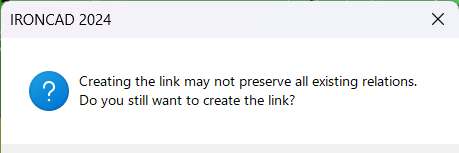

[3] A confirmation dialog will appear. Click [OK] to create the internal links.


Please refer to the video below.
