Display the candidate for the next command to use

Display the candidate for the next command to use

You can automatically display candidates for the next command to use, depending on the object selection. (Quick Access Command)
The menu is displayed near the mouse cursor, so you can smoothly migrate to the next operation.
You can also customize it, such as adding or replacing commands to display.

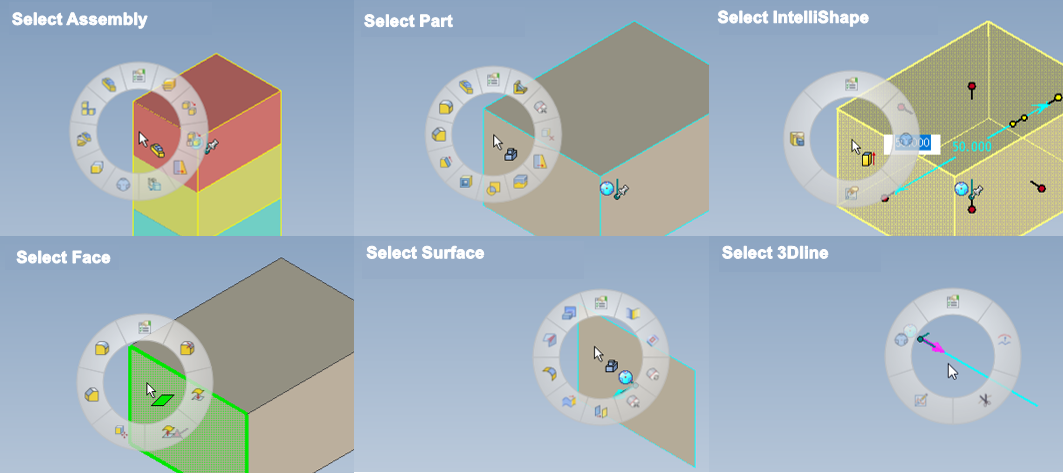

The display varies according to the selection of the object as follows:



How to display quick access commands

By default, it is displayed with the [S] key on the keyboard.

How to display quick access commands automatically

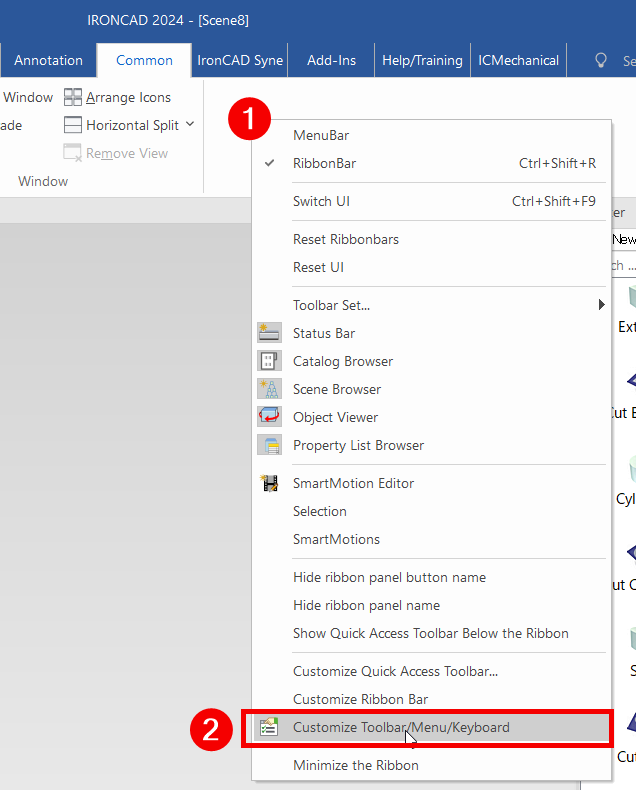

[1] Right-click where there is nothing in the IronCAD ribbon bar.

[2] Click User [Customize (Toolbar / Menu / Keyboard)] from the menu that appears.

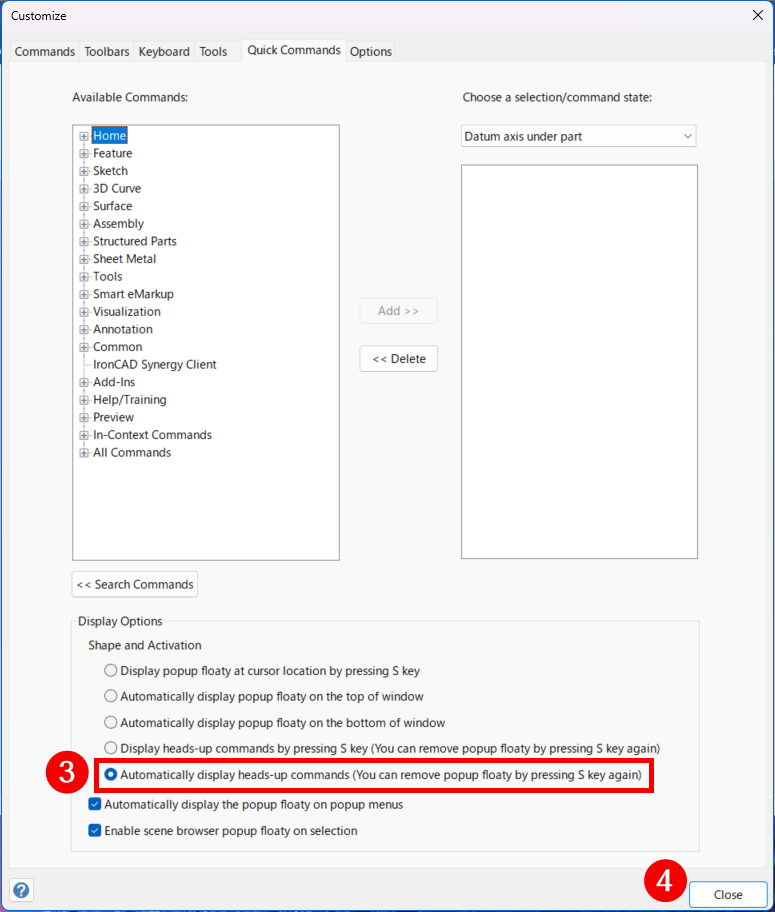

[3] In the User Settings window, check [Automatically display heads-up commands (You can remove popup...)].

[4] Close [Close].


Setup is complete.
After that, a quick access command is displayed according to the object selection status.



How to add commands to display in quick access command

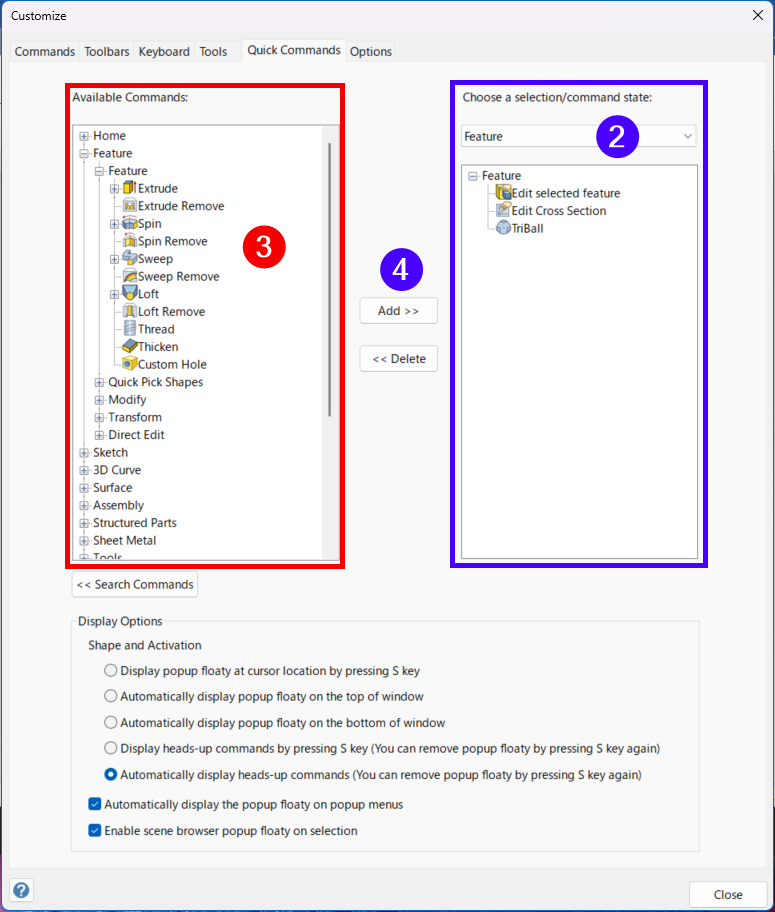

[1] Open the User Settings window (see [How to display quick access commands automatically]).

[2] Select the object from [Choose a selection/command state] (e.g., assembly, feature, etc.) (blue frame below).

[3] Select the command you want to assign from Available Commands (red frame below).

[4] Click [Add>>].
