Editing Centerlines After Creating a Broken View
This section explains how to edit centerlines after creating a broken view in CAXA Draft.
Procedure:

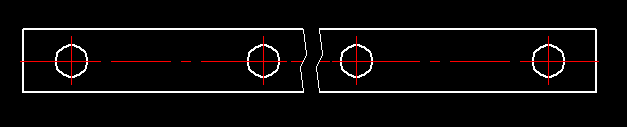

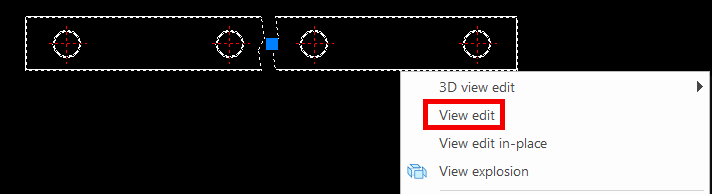

[1] Select the broken view, right-click, and click [View edit].
After creating a breakout view, you cannot edit the centerline by double-clicking the drawing and using [Block In-Place Edit].

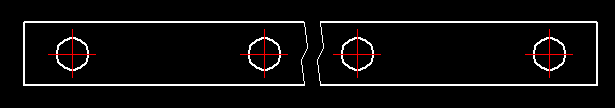

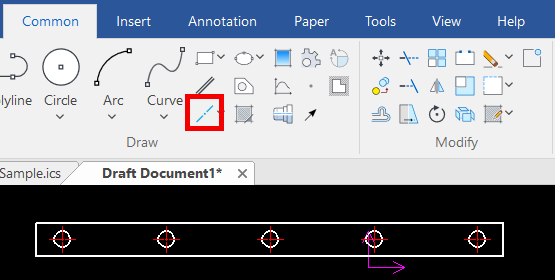

[2] On the [Common] tab, select [Center Lines] to create or edit centerlines.
Reference: Center Line - IRONCAD User's Guide

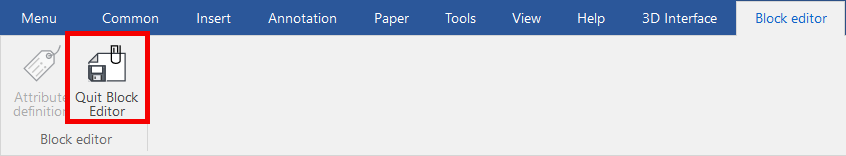

[3] Click [Quit Block Editor] to save the edits.
