Exporting Only Selected Views to DWG/DXF

Exporting Only Selected Views to DWG/DXF

This section explains how to export only the necessary projected views from a 2D drawing to DWG/DXF format, while excluding unwanted views.

Procedure:

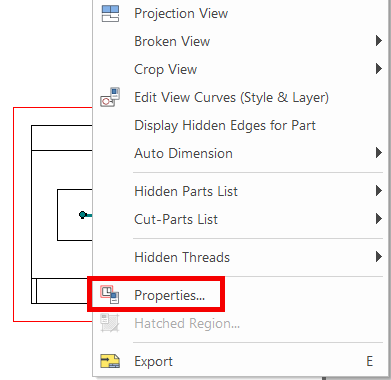

[1] Right-click on the projected view you want to exclude, then select [Properties].

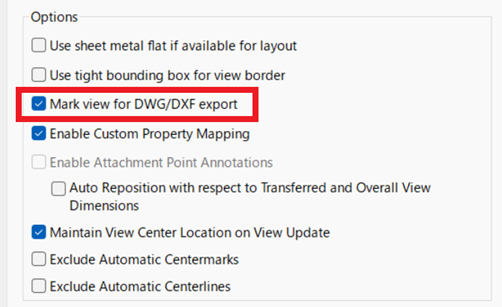

[2] Uncheck [Mark view for DWG/DXF export] in the Options

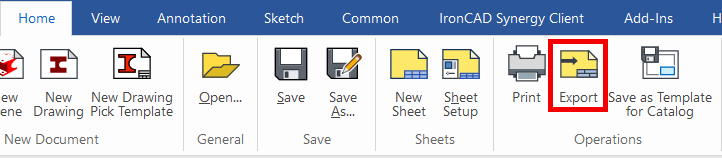

[3] From the [Home] tab, click [Export].


Select the file type as DWG or DXF, then click [Save].

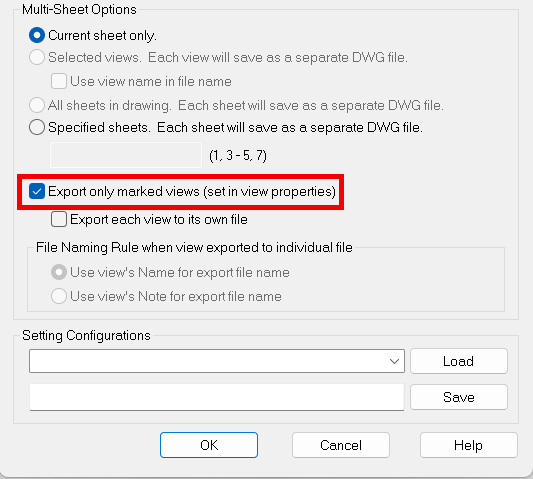

[4] Check [Export only marked views (Set in view properties)], then click [OK].


[5] Open the exported file to confirm that only the intended views were included.

Please refer to the video below.

DR-002
