Color some of the projections

Color some of the projections

This section explains how to add color to a portion of a view.

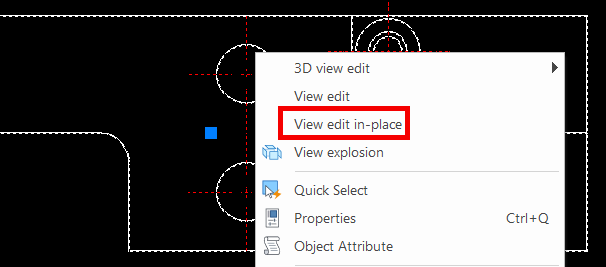

[1] After select view, click [View edit in-place] on right-click menu.
Notes
You can also double-click the projection drawing.

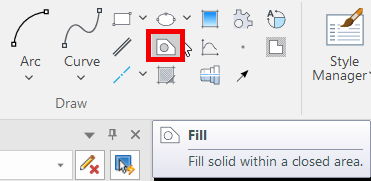

[2] From the [Draw], select [Fill], then left-click inside the area you want to color.

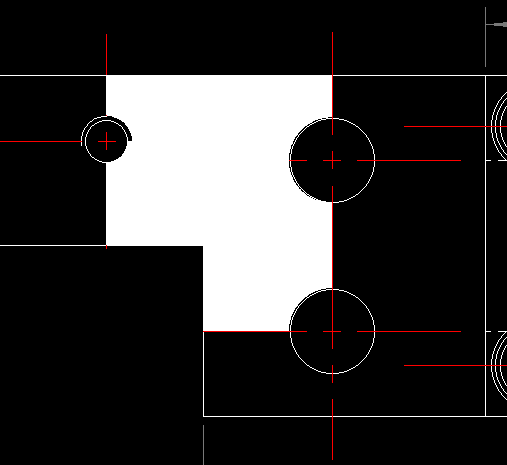

[3] After selecting the area, right-click to complete.


Please refer to the video below.

IC-049
