Grouping Item Numbers (balloons)

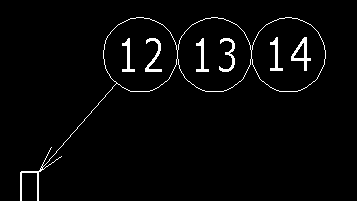

Item numbers (balloons) can be grouped.

Procedures:

[1] Create a item number with [Manual Generate item No.] on the [3D Interface] tab.

[2] Select the Item Numbers you want to group on the BOM list.

[3] Click on the item number created in [1] to group the item number.

Please refer to the video below.

CA-005
