[ICMechanical] Tab Is Not Displayed

[ICMechanical] Tab Is Not Displayed

If the [IRONCAD Mechanical] tab does not appear after installing IRONCAD Mechanical, please try the following procedure.

Solution:

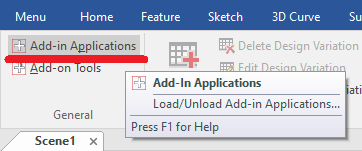

[1] Go to the [Add-in] tab → [General] group → click [Add-in Applications...].

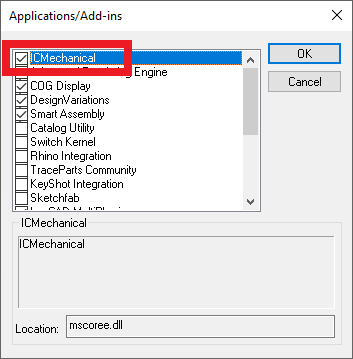

[2] In the list, check [ICMechanical], then click [OK].


[3] The [ICMechanical] tab should now be displayed.

＜If the Tab Still Does Not Appear＞

[1] Try temporarily disabling and re-enabling ICMechanical:
  1. Open the [Add-in Applications...] dialog.
  2. Uncheck [ICMechanical], then click [OK].

[2] Open the same dialog again, check [ICMechanical], and click [OK].
[3] After clicking [OK], a screen similar to the one shown below will appear, and the [ICMechanical] tab should now be displayed.
