Moving a View from an Arbitrary Base Point by Stretch
This section explains how to move a projected view from any chosen base point in CAXA Draft.
Procedure:

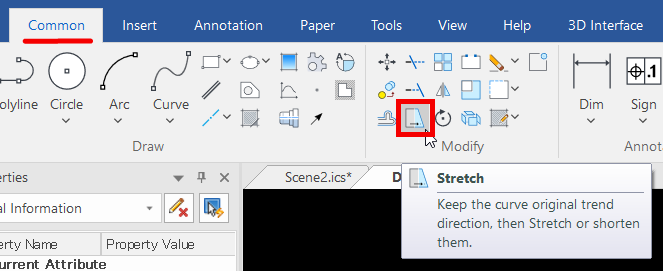

[1] On the Drawing tab, click [Stretch].
[2] In the Instance Menu at the lower-left of the screen, set Item 1 to [Select by window] and Item 2 to [Specify two points].
[3] Select the projected view you want to move, then right-click to confirm.
[4] Select the point that will serve as the base point for the move.
[5] Select the point to which you want to move the projected view.
Please refer to the video below.
