Multiple parts into one part (Boolean - Union)
Explain how to make multiple parts into one part.
Procedures:

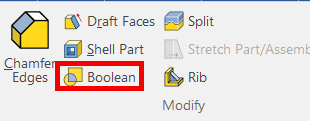

[1] Click [Boolean] on the [Feature] tab.

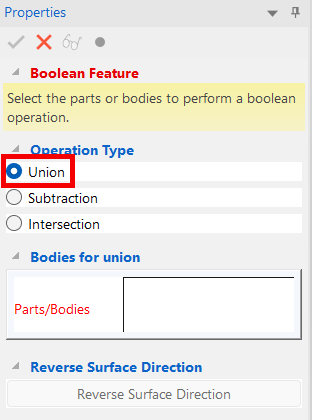

[2] Select [Union] from the [Properties].

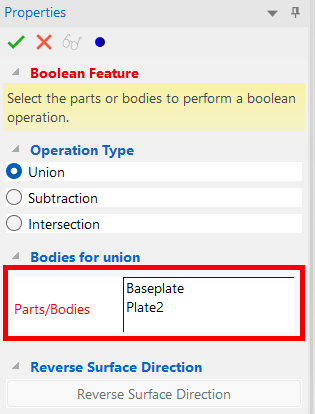

[3] Select multiple parts to change one part with left mouse click.
The selected parts are added to the target Parts/Body.
The selected parts are added to the target Parts/Body.
[4] Click [OK].
[Boolean] work differently from drag & drop such as catalog block parts because they force the sum, difference, and accumulated shape of parts.
When you collect parts with multiple Intellishapes, it is a configuration where parts enter the part as follows.
If you create a fillet or chamfering with multiple parts separated, the desired shape may not be created.
In that case, please correct it after 1 part.
