Recording Your Operations

Recording Your Operations

In IRONCAD, you can record your screen operations using the [Help/Training] tab → [Recording] group → [Record].

Procedure:

[1] Open the IRONCAD scene (3D data).

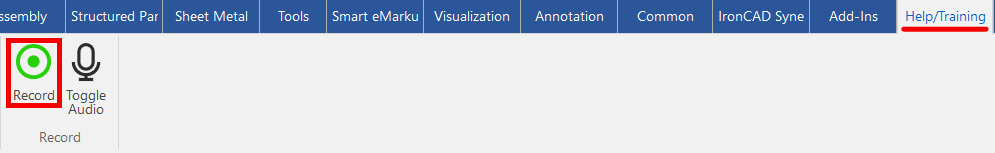

[2] Navigate to [Help/Training] tab → [Recording] group → [Record] to start recording.


[3] Perform the desired operations.
Notes
 If you switch to 2D Draft (CAXA Draft) during recording, the 2D Draft window will be recorded.
[4] If you are currently in 2D Draft (CAXA Draft), switch back to the 3D scene.

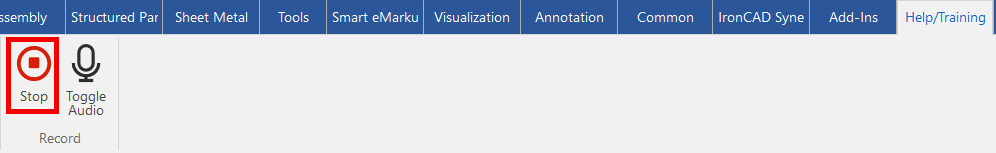

[5] To stop recording, go to [Help/Training] tab → [Recording] group → [Stop].

[6] After stopping, the [Save As] dialog will appear. Specify the file name and save location, then confirm to save the recording.
Info
The screen recording function is available starting from IRONCAD 2022.
