Reflect and refer to other dimensional values in sketch dimensions

Reflect and refer to other dimensional values in sketch dimensions

*IRONCAD 2024 New Features

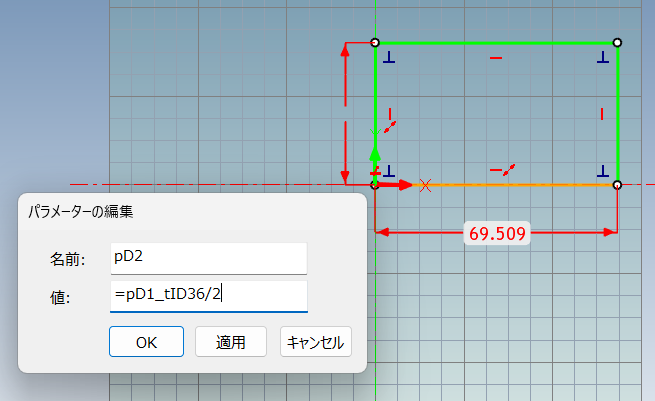

Explain how to reflect or refer to other dimensional values in SmartDimension created in a 3D sketch.
It is effective when creating shapes that change regularly.


Warning
Can't apply to cross-sectional shapes of standard catalog blocks. Again, the cross-sectional shape you referenced.Please note that it will not work if it is solidified by [push] etc.

Please refer to the following video for details.

Ic-135
