[Render Now] Window Does Not Appear

[Render Now] Window Does Not Appear

In some cases, the [Render Now] window does not appear even after executing the command.
This issue is related to specific settings.

Cause:

The rendering engine in the 3D Options is set to [Legacy Raytracing Engine], which does not support the [Render Now] feature properly.

Solution:

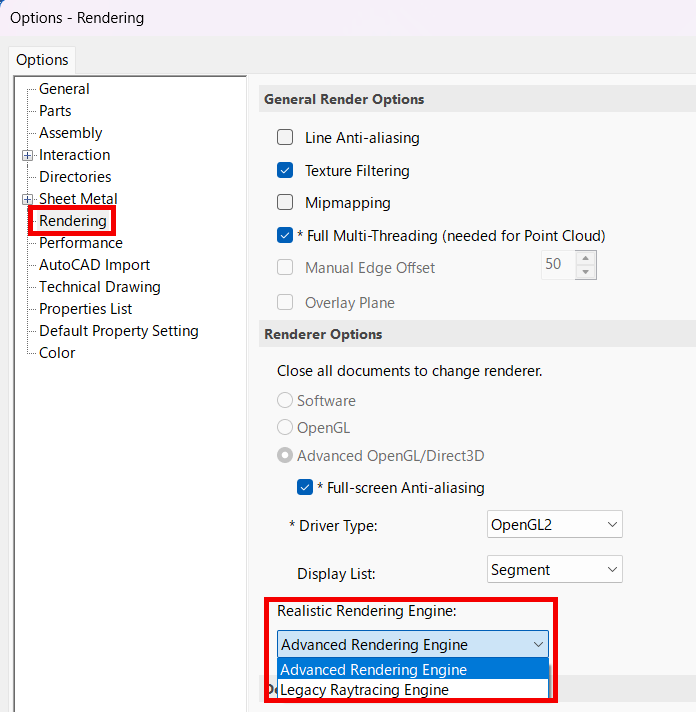

[1] Open 3D Options, go to the Rendering settings.
Change to [Advanced Rendering Engine] from [Legacy Raytracing Engine:].

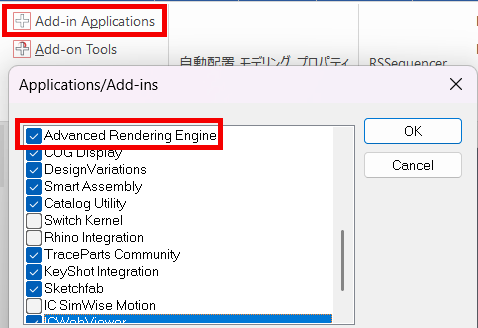

[2] Click [Add-In Applications] in the [Add-Ins] tab.
In the menu, check the box for [Advanced Rendering Engine].


[3] Click [Render Now] in the [Visualization] tab and confirm that the render window appears as expected.
