Replacing Features via Drag & Drop from the Catalog

This section explains how to replace a feature using the drag-and-drop function from the catalog.

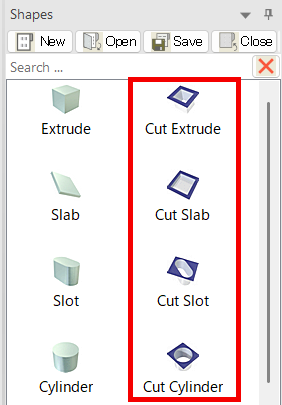

Press and hold the Ctrl key while dragging the desired catalog item (feature) with the left mouse button.

Drop the item onto the face or edge of the feature you want to replace.

Please refer to the video below.

IC-134
