Set Catalog Items at the junctionI'll explain the way.
By setting Catalog Items, you can automatically place the parts with the name set to Catalog Items when dropping a group from the catalog.

Procedures

From the Tools tab → Intelligence → Insert Junction, add a junction to the part.


[2] Select the binding point and right-click to set the binding point name and behavior.

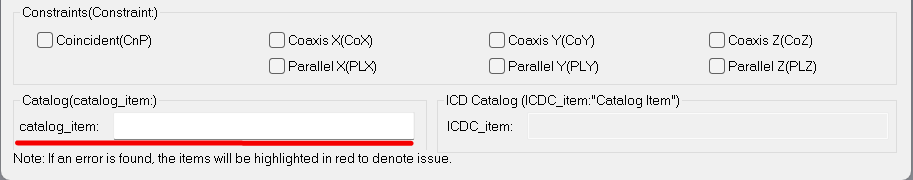

[3] Change the settings of the junction and enter any name in Catalog Item.


Please refer to the following video for details.


Ic-140
