Set the 3D information in the title field

Set the 3D information in the title field

By default, the top part information on the 3D scene tree is output to the CAXA Draft title block.
After creating the projection drawing, right-click on the title block and select "Set 3D Info" from the menu to change the display configuration or link destination parts.

Procedures:

[1] Project a 3D model onto the CAXA Draft.

[2] Left-click on the title block to select.

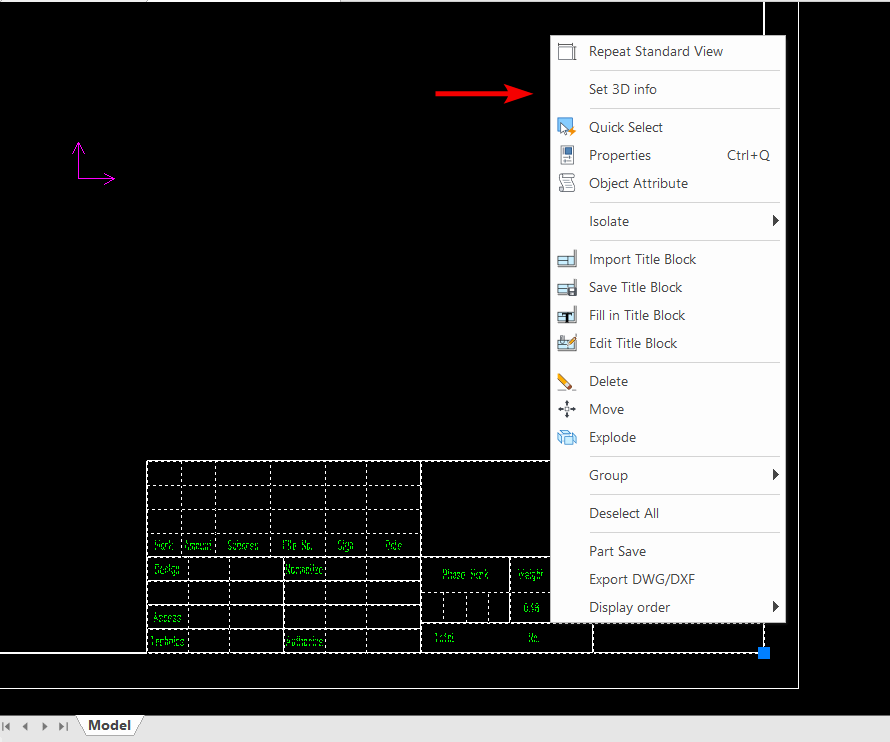

[3] Right-click and select [Set 3D Info] from the menu.

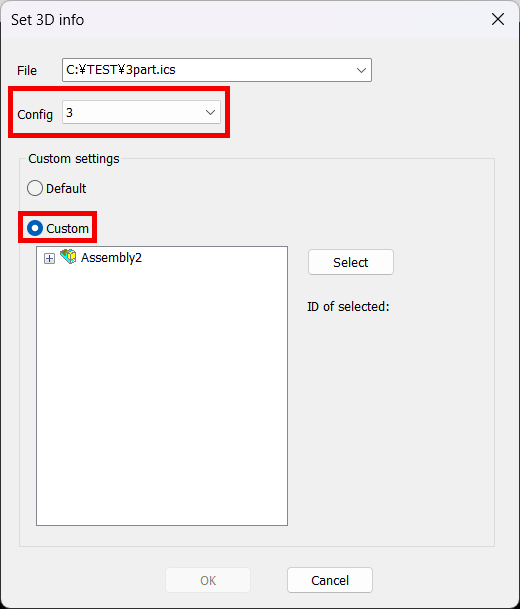

[4] Set the "Configuration" and "Custom Settings".

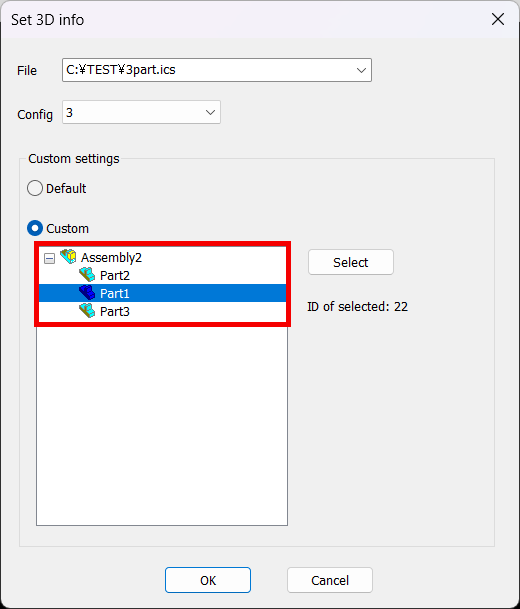

[5] Select any part.
If you want to select parts in the assembly, expand the assembly and select the parts.


[6] Click "Select".

[7] Click "OK".

Please refer to the video below.
CA-011
