Set the auxiliary sign of the surface shape to the welding sign

Set the auxiliary sign of the surface shape to the welding sign

by CAXA Draft.Explain how to set a surface shape auxiliary sign for welding sign.

Procedures

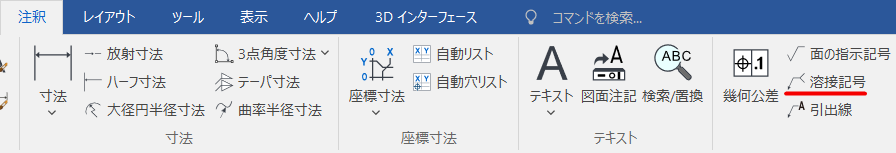

Select [1] Note tab → Welding Symbol.

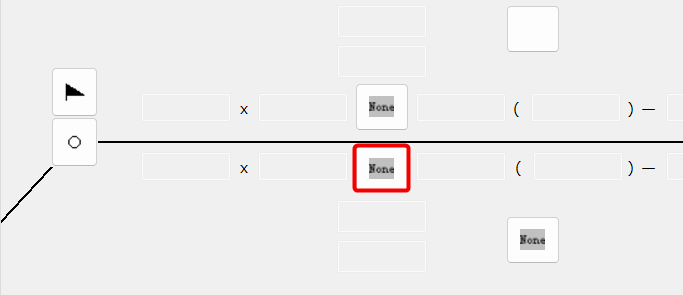

[2] Set the opening sign.

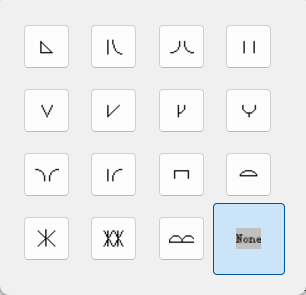

Initially, it is None, so select any symbol from the list on the right.


[3] [Open sign] in the field below [-]Enter (full-width conversion of dash).


Notes
Lower right of the welding symbol baseline (red frame part)If you set an auxiliary symbol from, it will be displayed under [Auxiliary Symbol of Finishing Method].
Therefore, please replace it with [-] (full-width conversion of dash).

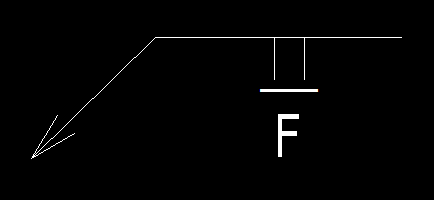

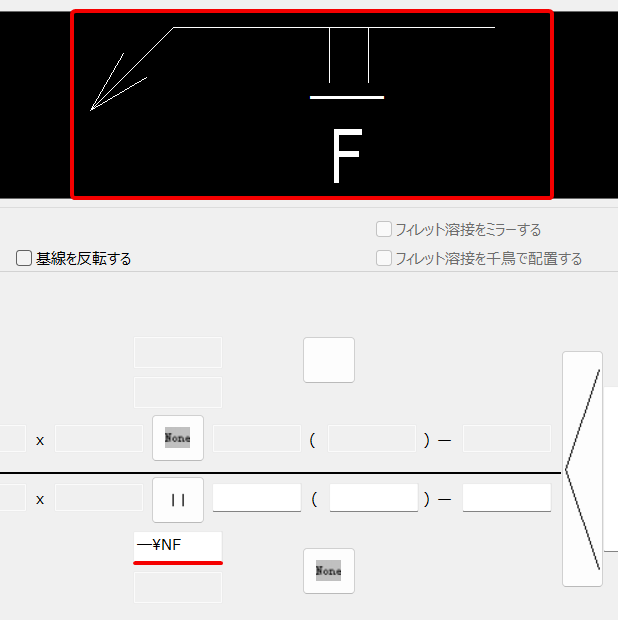

[4] Enter the auxiliary sign for finishing methods, and enter the line break code [¥N] between [-].
*[¥n]: Lowercase not allowed


Warning

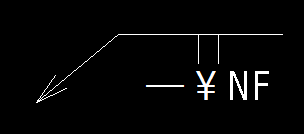

Please enter the line break code [¥N] in [half-width].
If you enter it in full angle, it will not be recognized as a line break code and will be displayed as it is.
