Displaying SmartDimensions in the 3D Scene
This section explains how to display SmartDimensions in the 3D scene.
This feature has been available since IRONCAD 2025.
Steps

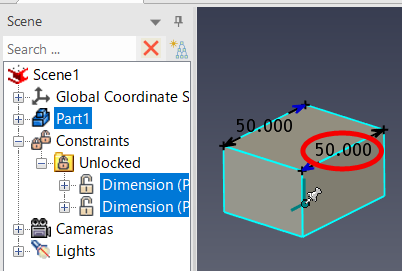

Example: To display only the SmartDimension on the right side, as shown in the image below.

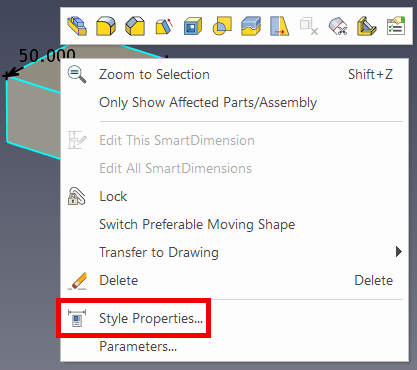

[1] Right-click the SmartDimension you want to hide and select [Style Properties].
[2] The dialog box shown below will appear.

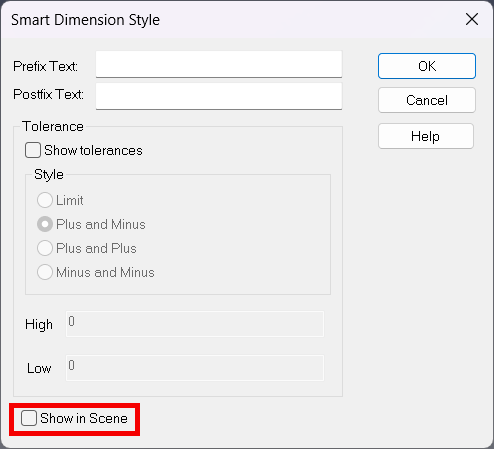

Uncheck [Show in Scene] in the dialog box and click [OK].

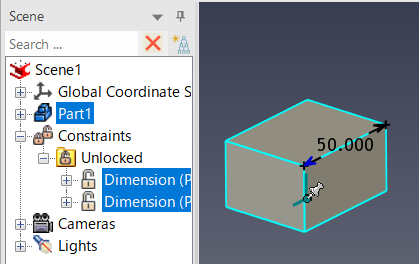

[3] SmartDimensions with [Show in Scene] unchecked will no longer be displayed in the scene.
The above setting cannot be applied to multiple SmartDimensions at once.
Therefore, it must be configured individually for each SmartDimension.
To display all SmartDimensions, you can change the scene settings so that they are always visible.

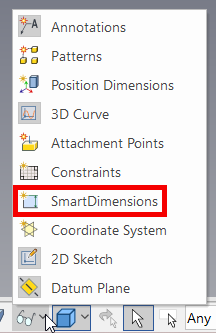

Click [SmartDimension] from the glasses icon in the status bar at the bottom of the screen to display them.
