Change the length of the line by specifying the extension direction (IRONCAD/Setch Mode)

Change the length of the line by specifying the extension direction (IRONCAD/Setch Mode)

This section explains how to change the length of a line in a specified direction during a 3D sketch in IRONCAD.

Procedure:

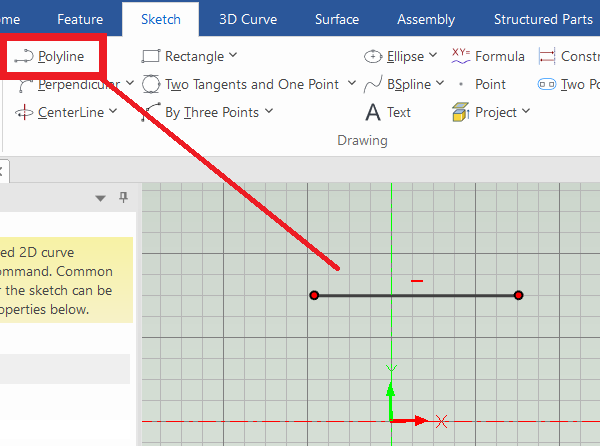

[1] In the sketching screen, use [Polyline] to draw a horizontal straight line.


[2] Create dimensions using [SmartDimension].

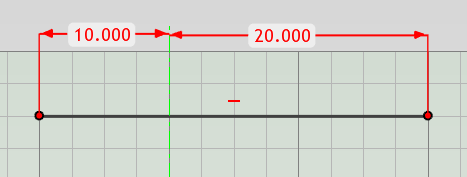

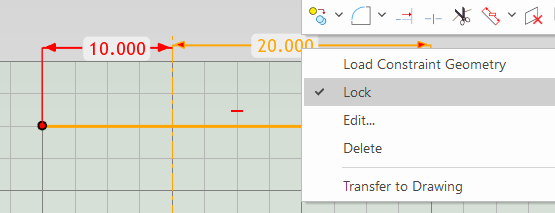

[3] Click [Lock], then unlock dimensions.

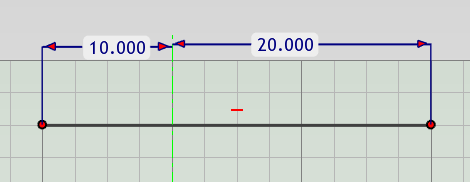

Change Blue color.

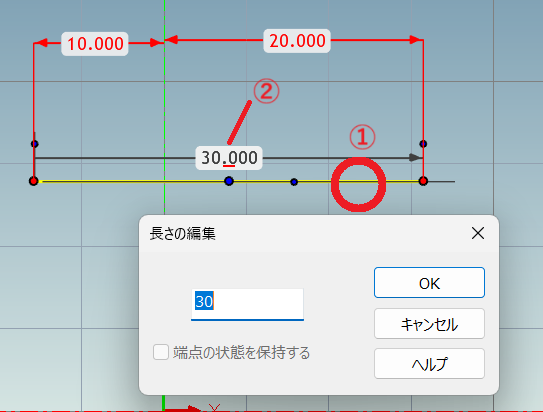

[2] Click on the line near the end of the side you want to extend.
For example, if you want to extend the right side. ①

[3] Double-click the length (dimension) of the line. ②

[4] Enter the length and press enter to change the length.

Please refer to the video below.

IC-113
