[Surface Finish] Scale Adjustment

This section explains how to change the scale (size) of Surface Finish.

To change the scale of the entire drawing

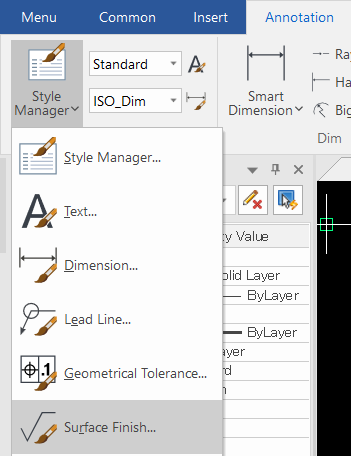

[1] Click [Surface Finish] style in the [Annotation] tab.

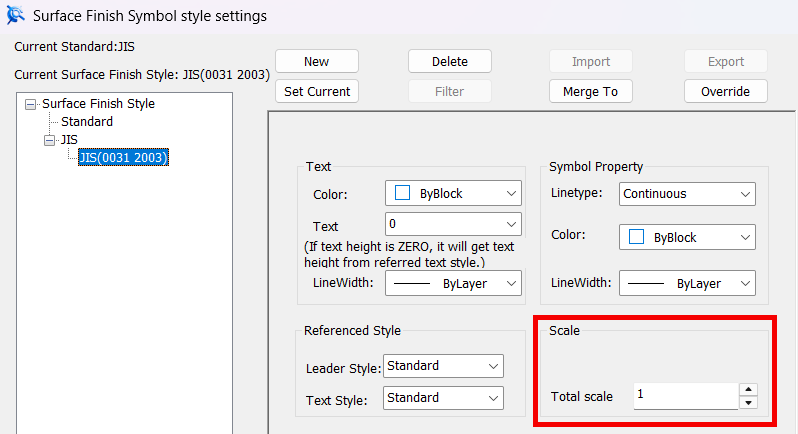

[2] Change the value of [Scale:].

To change the scale of part of the drawing

[1] Select the Surface Finish(s) you created. Multiple selections are allowed.

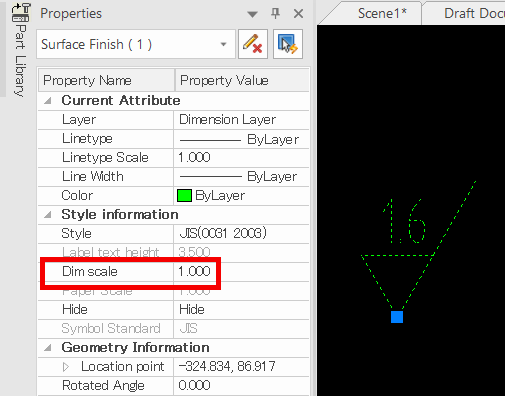

(2) Change the value of [Dim scale] in the Properties.
