Switch the Display of the Popup Float

Switch the Display of the Popup Float

Starting with IRONCAD 2024, a new setting has been added that allows a popup float to be displayed when selecting an Assembly, Part, or IntelliShape in the Scene Browser.

For Assembly



For Part



For IntelliShape




Notes
The commands displayed in the popup float are the same as those shown when pressing the S key (Quick Access Commands).

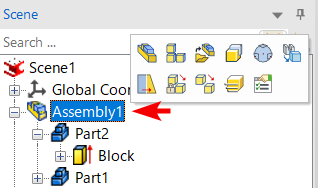

For Assembly

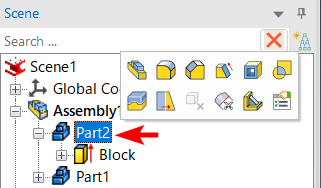

For Part


For IntelliShape

How to switch Popup Float Visibility

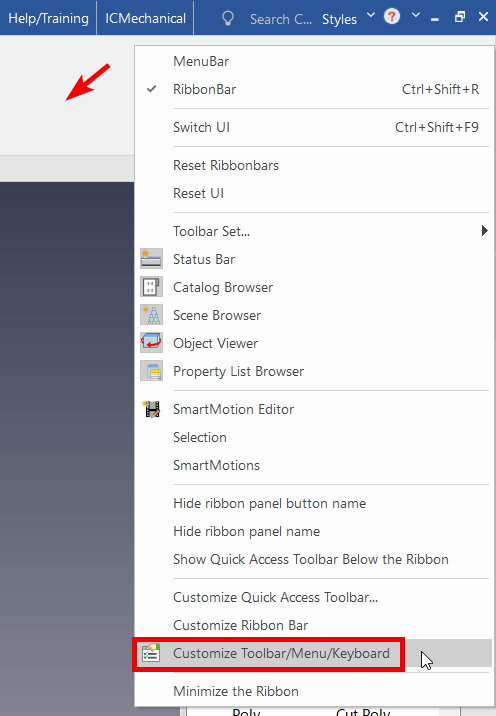

[1] Right-click on an empty area of the ribbon and select [Customize Toolbar/Menu/Keyboard] from the context menu.

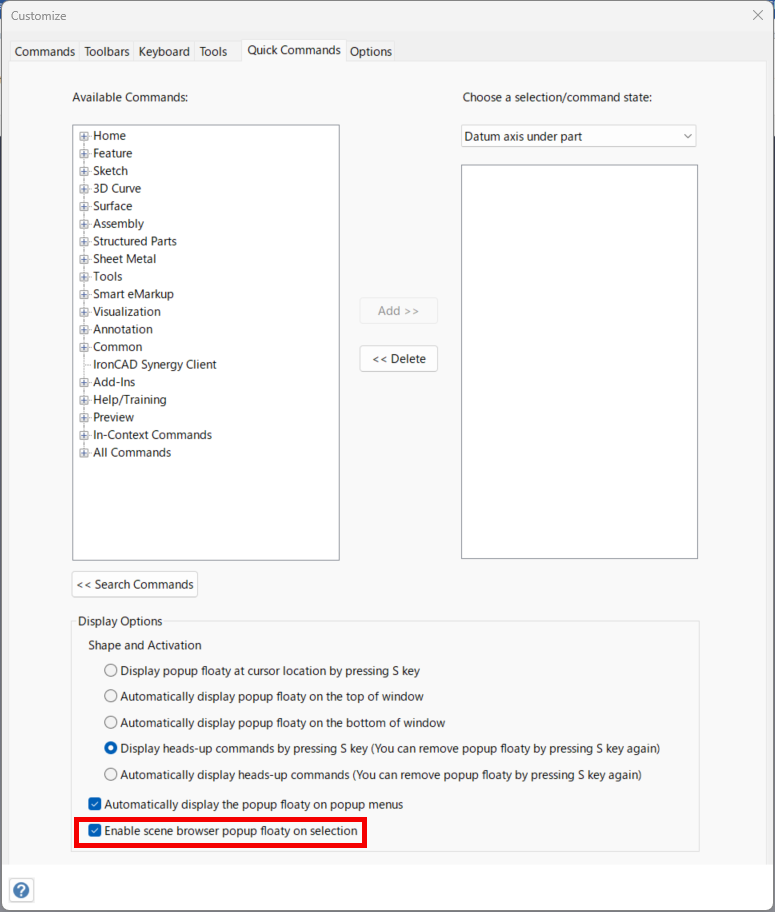

Check or uncheck [Enable scene browser popup floaty on selection] based on your preference.
