Text (value) is not displayed in the BOM list

Text (value) is not displayed in the BOM list

On the input screen of the BOM list, if the information is entered but not displayed in the part list, the following causes may be considered.
  1. Text Height in [Text Style] is set to 0(zero)

Solutions

You can display it by editing Text Style.

Procedure:

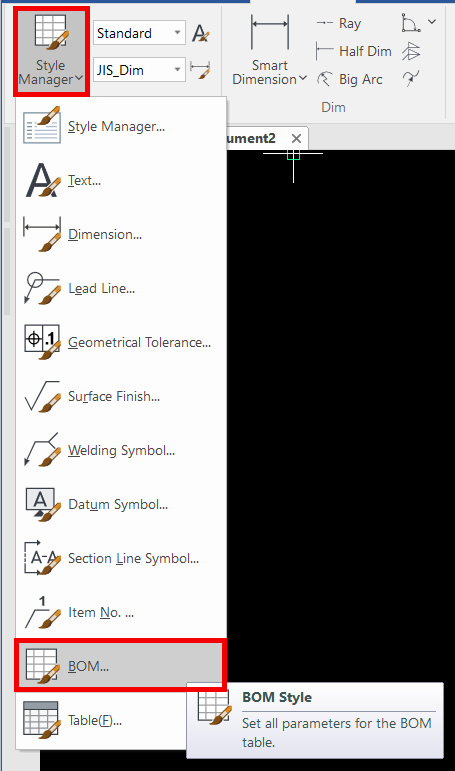

From the pull-down menu, select [Style Manager] on the [Annotation] tab.

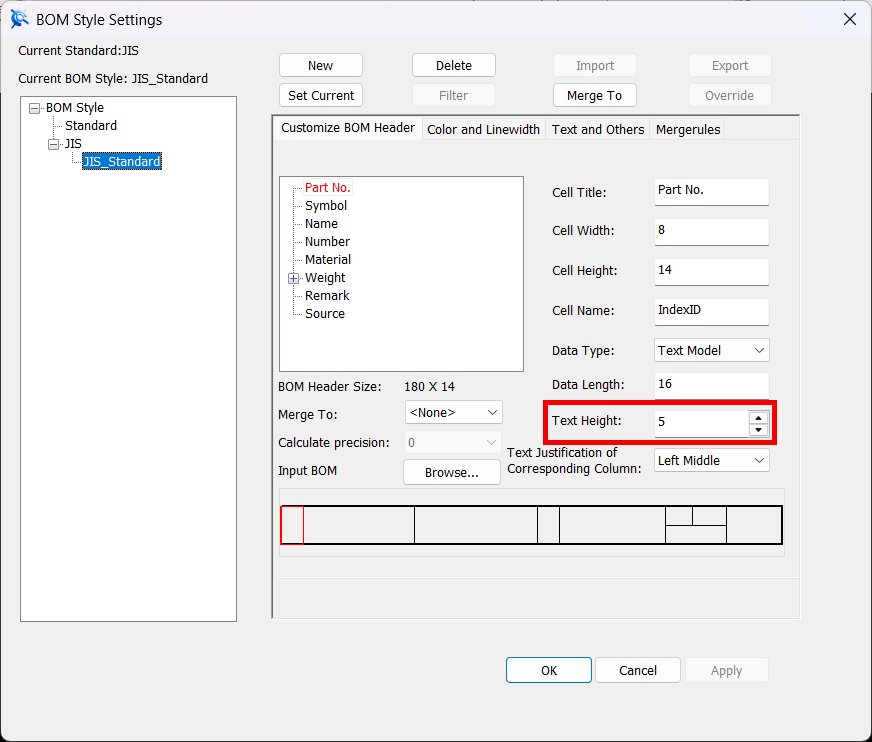

Click [BOM] and display the BOM Style screen.


[2] Set the [Text Height] to a value greater than [１].


Notes
Style settings apply to files that are currently open.
By setting it in the template file(.tpl), you do not need to set it up each time.
Please refer to the video below.

CA-003
