Applying Materials in KeyShot
Material and Color information assigned in IRONCAD cannot be transferred to KeyShot.
You need to assign materials and colors in KeyShot separately.
Procedure for Material
[1] Open the model in KeyShot.
Reference: Collaborate with KeyShot
Reference: Collaborate with KeyShot

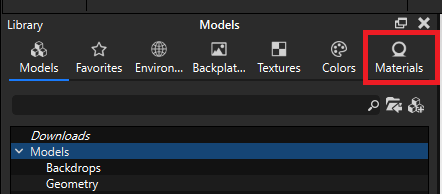

[2] Open the [Materials] tab in the Library window.

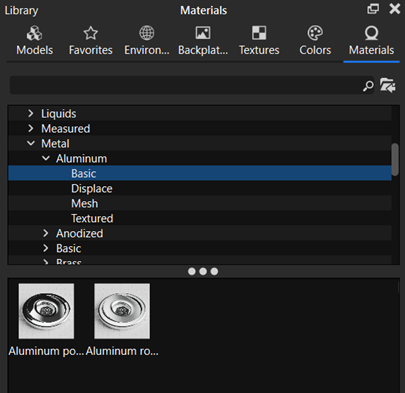

[3] Select the material you want to apply.

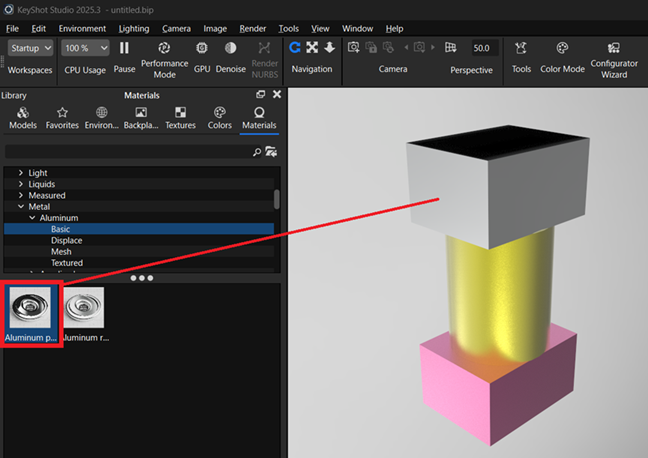

[4] Drag and drop the selected material onto the part in the center of the screen.
Procedure for Color
When you apply a material in KeyShot, the original colors imported from IRONCAD are replaced by the material's colors.
To change the color, use the Project window on the right side of the screen.

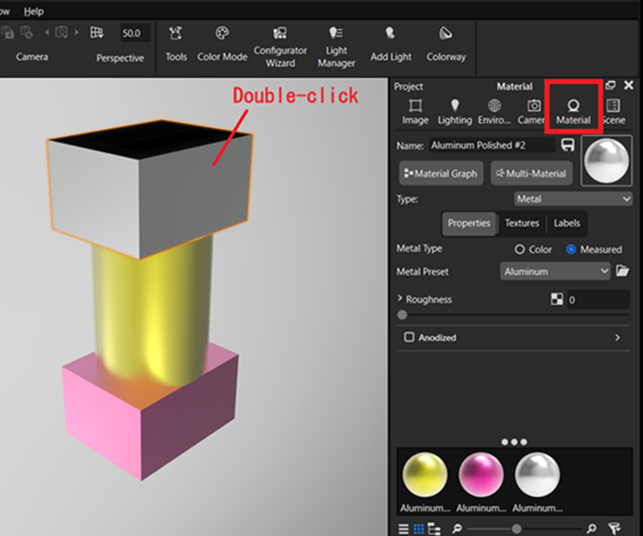

[1] Double-click the part whose color you want to change in the center of the screen.
The Project window automatically switches to the [Material] tab.

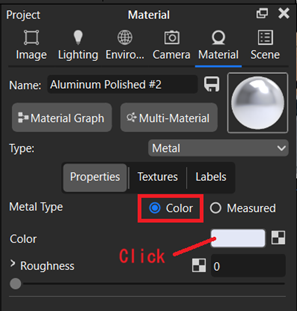

[2] Change the material type to [Color], and then click the color swatch.

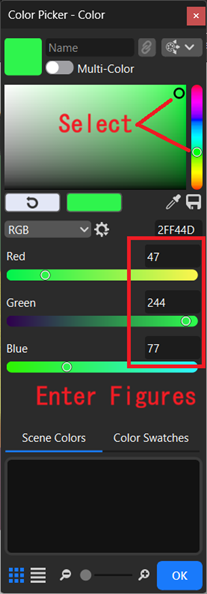

[3] Select the desired color using the color picker, or enter the RGB values.
[4] Click OK to apply the color.
Please refer to the following video.
Key-002
Key-002
