TriBall Setting and CAXA JIS Templete

Applying this will change or add the following settings.
Version: IRONCAD 2025

Click here and download: icdcs2025PU1SP1-AS-HotFix20260304

Procedure:

1. Close all IronCAD.
2. Unzip the downloaded ZIP file.Run the exe file with double click.
   * If you see the message "Windows protected", you can select "Run" by clicking Details

Changed Settings:

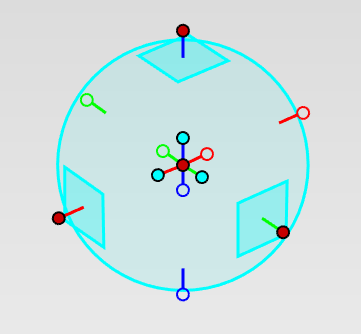

〔1〕 All TriBall handles of 3D are displayed, improving operability.

<Before>                                          <After>

  →

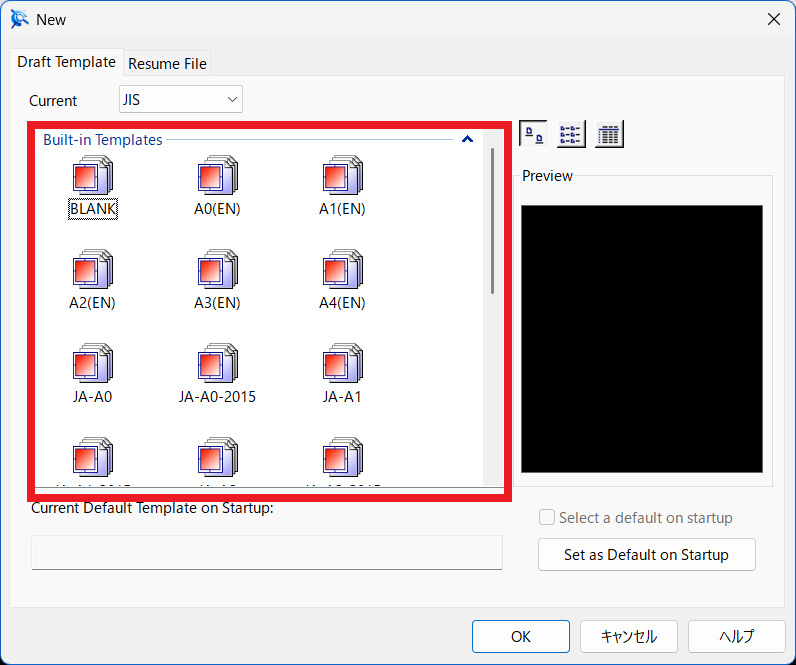

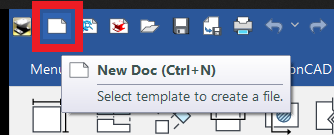

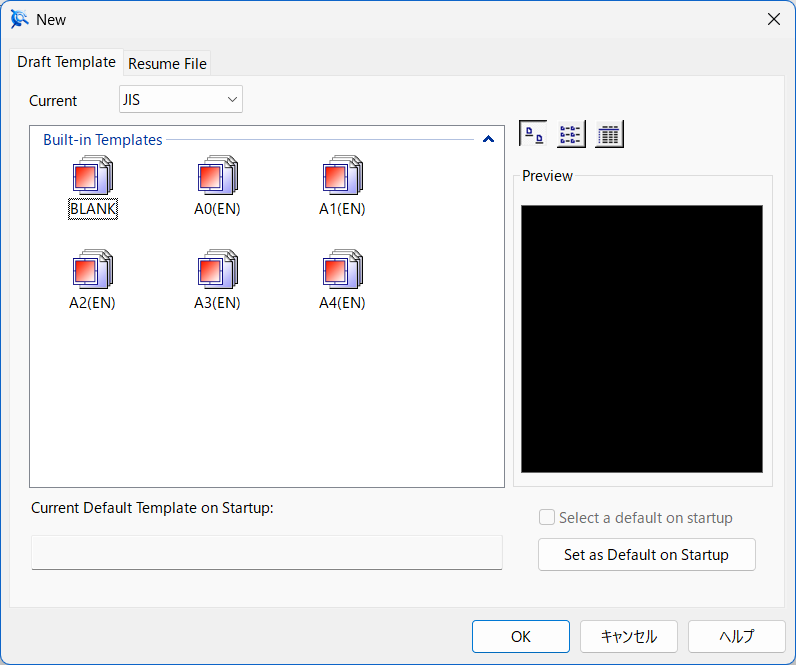

〔2〕 When creating a new document in CAXA Draft, JIS templates will be added.

 Select "IronCAD Draft". Then select "JIS" from "Current" pull down menu.

<Before>                                                                                             <After>

   →

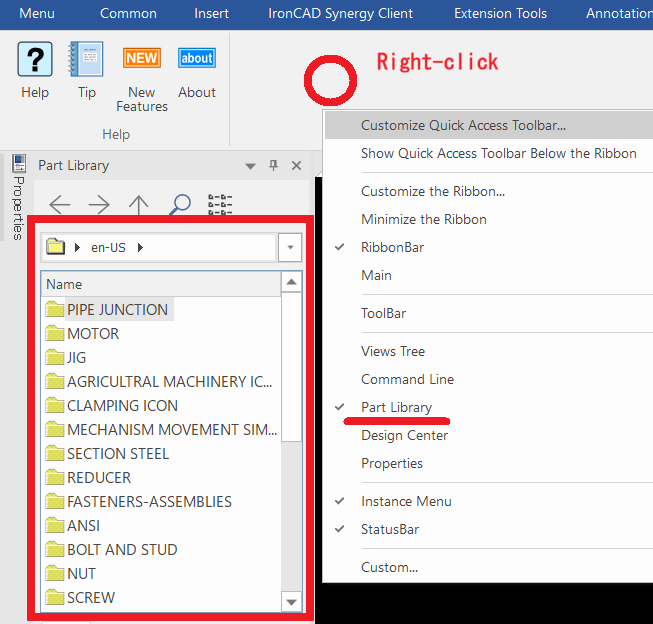

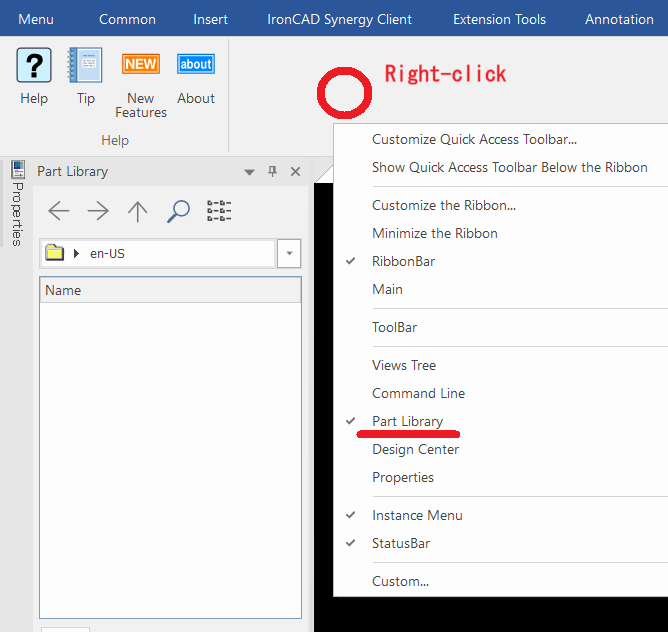

〔3〕 Part Library items are added in CAXA Draft.
<Before>                                                                                             <After>
   →
