Disable the hidden edge display set by rendering in the right-click menu
Published: April 7, 2025
Situation: Improved
Target Products and Versions
IronCAD 2024
Content of the defect
If you perform a specific operation during the display of hidden edges, the hidden edges will no longer be displayed.
Fault operation
- Set the hidden edge display.

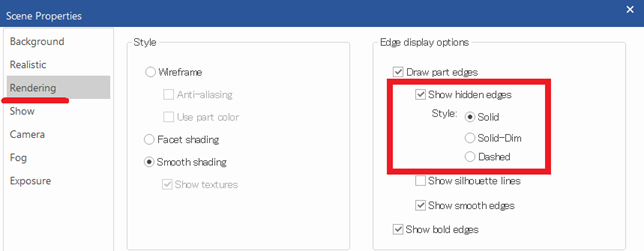

Right-click the scene and check "Show hidden edges" on the "Rendering".

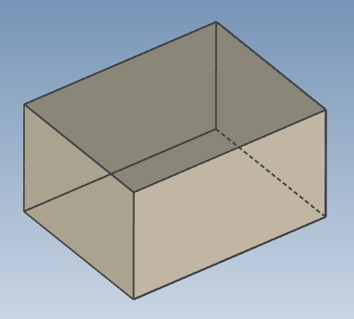

Display hidden edges for all elements on the scene. (This also applies to newly added elements from the catalogs)
- Create a cross-sectional shape anywhere in the model by "2D shape" on the "Sketch" tab.
- Click "Finish".

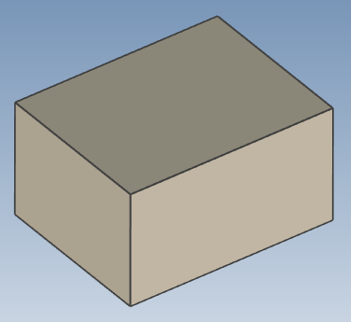

Hidden edges will not be displayed. (Right-view) *1. The settings are checked.
When you restart IronCAD, it will return.
How to deal
You can apply the IRONCAD 2024 Cumulative Hotfix.
