Mechanism Mode - Drag operation

Mechanism Mode - Drag operation

The [Mechanism Mode] is a feature that allows for simplified verification of 3D motion.

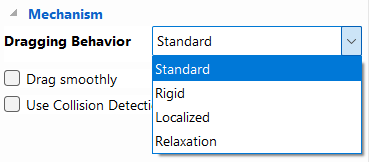

There are four types of drag operations available in Mechanism Mode:

  1. Standard
  2. Rigid
  3. Localized
  4. Relaxation
Each mode differs in how motion is transmitted.

Please refer to the video below.

IC-031
