Move the Position of 2D Sketch Geometry
When creating 3D shapes, you may need to create 2D sketch geometry.
Sketch shapes can be drawn freely, and there may be cases where you move the drawn geometry.
There are three methods for moving sketch geometry, as described below:

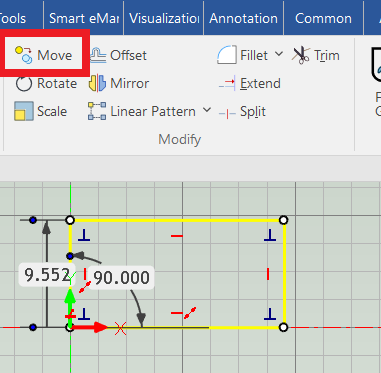

- Select the sketch geometry, then click [Move] in the [Sketch] tab.

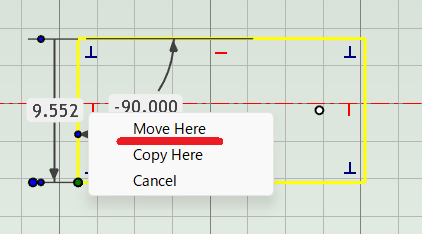

- After selecting the geometry, right-click and click [Move Here] in the context menu.

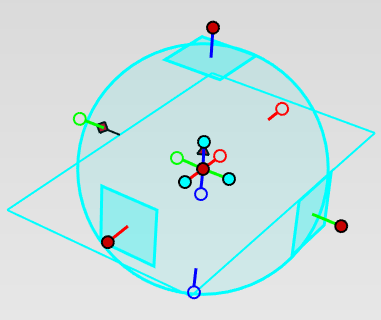

- Use the TriBall to move the shape.
Please refer to the video below.
IC-048
