Opening the IRONCAD Mechanical Catalog

Opening the IRONCAD Mechanical Catalog

This section explains how to open the IRONCAD Mechanical catalog after installing IRONCAD Mechanical. The process begins with enabling the [ICMechanical] tab.

Displaying the [ICMechanical] Tab

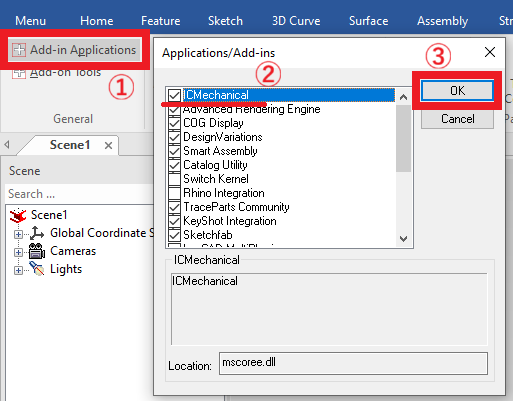

[1] Click [Add-In Applications] in the [Add-Ins] tab.

[2] The [Applications/Add-Ins] dialog will appear.

[3] Select the checkbox for [ICMechanical] and then click [OK].

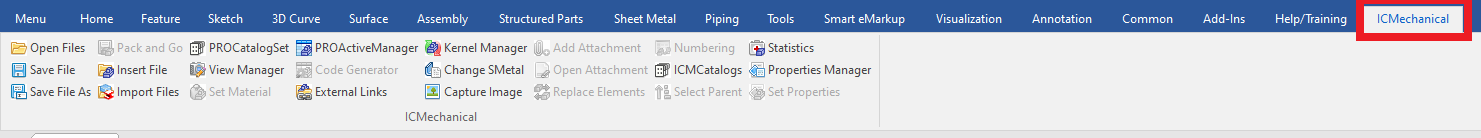

[4] The [ICMechanical] tab will now be displayed.

If the [ICMechanical] Tab Does Not Appear

In the [Applications/Add-Ins] dialog, uncheck [ICMechanical] (disable) and click [OK].
Reopen the [Applications/Add-Ins] dialog, recheck [ICMechanical] (enable), and click [OK].

If the Tab Still Does Not Appear After Enabling/Disabling

In the [Applications/Add-Ins] dialog, leave [ICMechanical] unchecked (disabled).
Close IRONCAD completely.
Restart IRONCAD.

Displaying the IRONCAD Mechanical Catalog

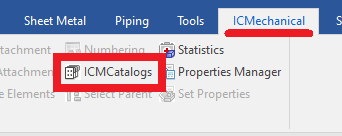

[1] Go to the [ICMechanical] tab → [ICMechanical] group → click [ICM Catalog].

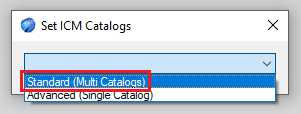

[2] The [ICM Catalog Setup] dialog will appear. Select [Standard (Multi Catalogs)].

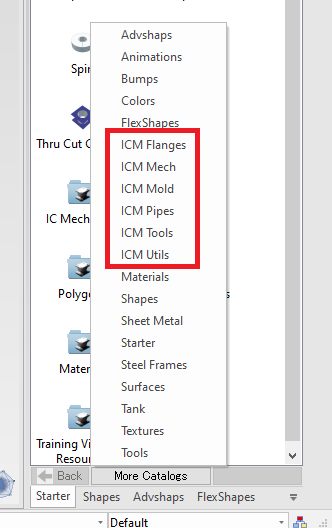

[3] Seven catalogs will be opened.
