Change some of the bend angles created with sketch bends
This section explains how to modify the bend angles of sheet metal parts created using the [Create Sketch Bend] feature.

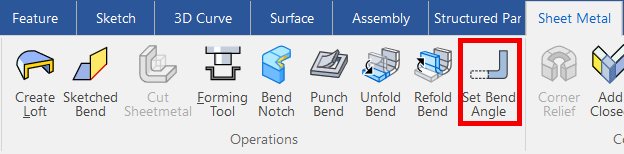

While the [Set Bend Angle] command allows you to set the bend angle for each bend line at the time of creating the sketch bend, it is also possible to change the bend angle later for the shapes that have already been created.
Please refer to the video below.
IC-128
