Creating a Sheet Metal Part Using [Curved Stock]

Creating a Sheet Metal Part Using [Curved Stock]

This section explains how to create sheet metal using [Curved Stock].

Procedure:

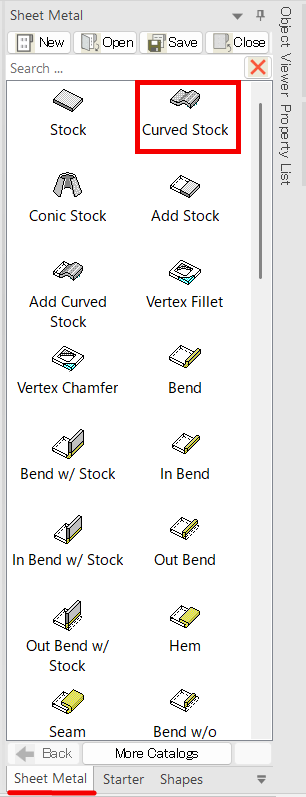

[1] Drag and drop [Curved Stock] from the [Sheet Metal] catalog.

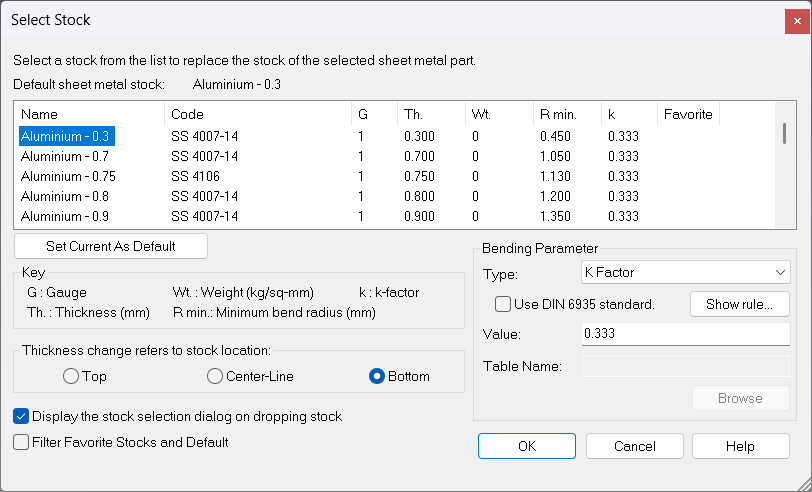

[2] In the [Select Stock] window, choose a stock and click [OK].
Notes
The visibility of this window can be set in the options.

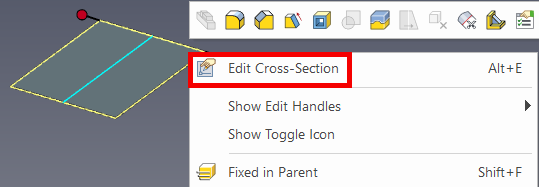

[3] Enter IntelliShape mode and right-click to open the context menu, then select [Edit Cross-Section].

​
[4] Go to the [Sketch] tab → click [Polyline], then modify the guideline.
※Please show the video below.

[5] To create a polyline with bends, add fillets at the bend points.

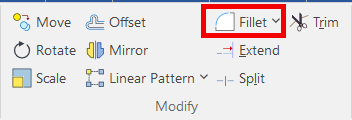

[Sketch] tab → [Edit] group → [Fillet]

Warning

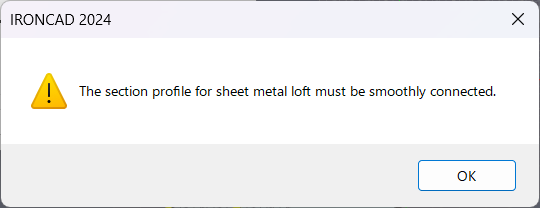

If no fillets are created, an error message will be displayed.
(Bends willl be created without fillets from IronCAD 2025. In at case, it will be created with a minimum R)

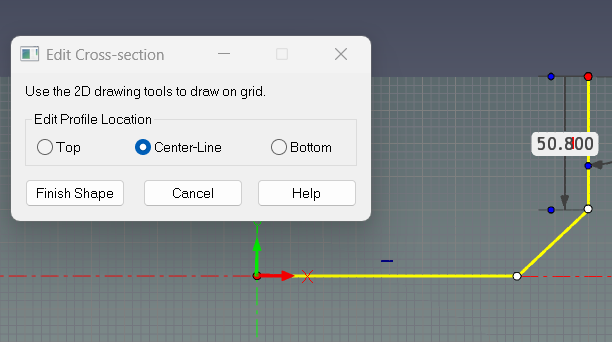

[6] Click [OK] to exit the sketch.
The sheet metal shape will be created.

Please refer to the video below.

IC-082
