Docking/Undocking the Scene Browser and Catalog Browser

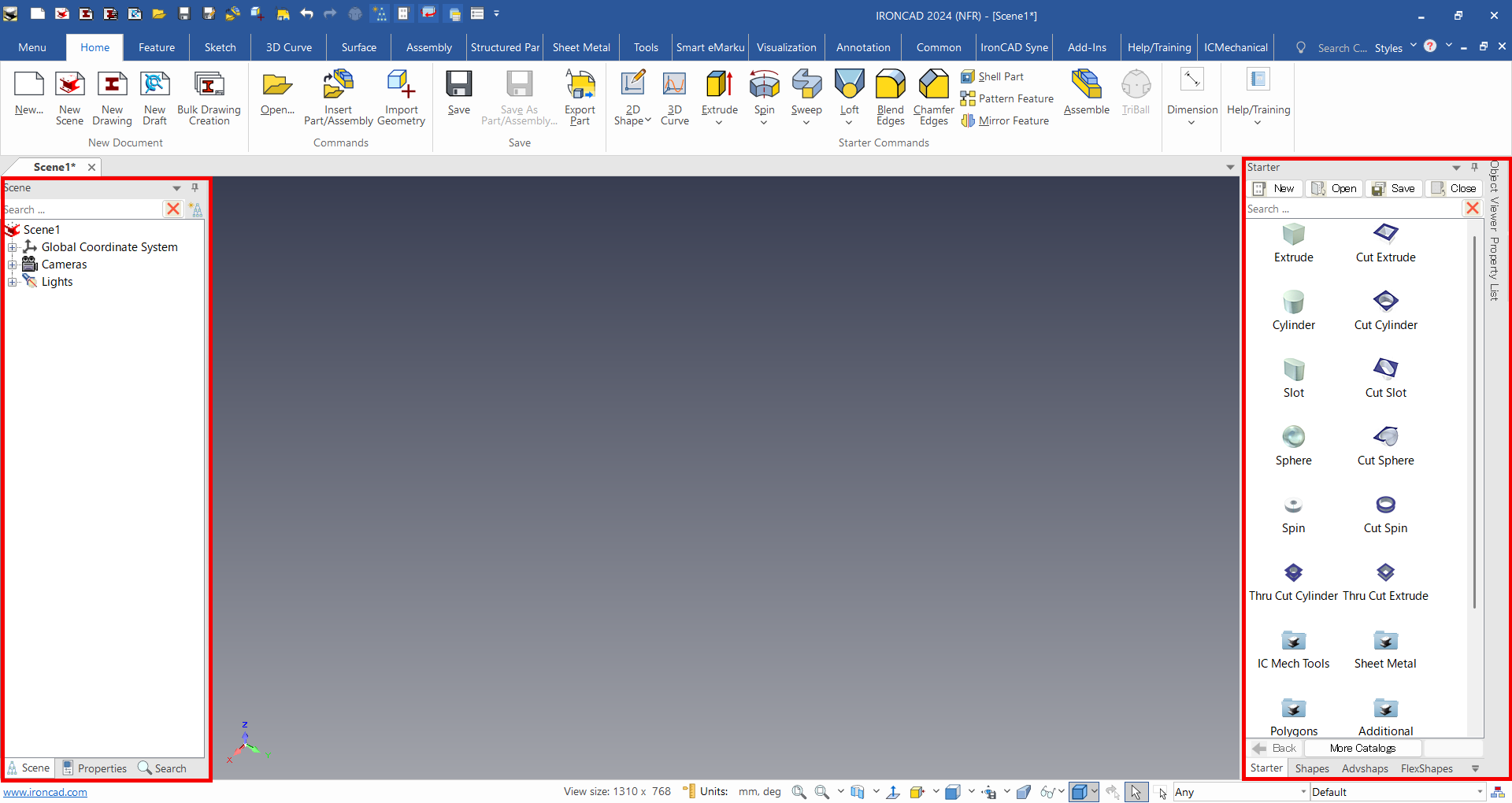

In the 3D scene, panels such as the Scene Browser and Catalog Browser are docked to the left or right sides by default.
You can change their positions and set them to either floating or docked states.
Target
- Scene Browser (Scene / Properties / Search)
- Catalog Browser (Various categories)
- Object Viewer
- Property List
Please refer to the video below.
IC-062
