Unable to Import Point Cloud Files

Unable to Import Point Cloud Files

Point cloud files typically use extensions such as .PTS and .PTX.
If the import into IRONCAD fails, please try the following steps:

Solution:

[1] Open 3D Options Settings, enable [Full Multi-Threading (needed for Point Cloud)] in the [Rendering] section.


[2] Click [Apply] and then [OK] at the bottom right of the [Options] window.

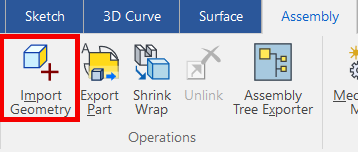

[3] click [Import Geometry] in the [Assembly] tab and select the Point Cloud file.

Notes
If the import still fails after performing the above steps, please contact our support team for assistance.
