Edit Brep parts

Edit Brep parts

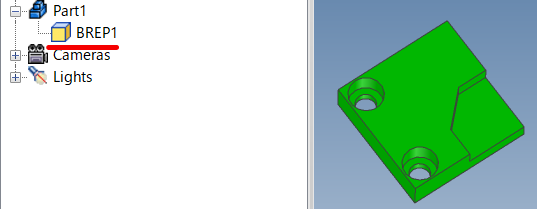

When you obtain 3D data for purchased components from other 3D model download services, you can import them into IRONCAD using compatible file extensions.


For solid parts, you can perform direct editing and modifications using IRONCAD’s Direct Modeling tools.
The editing method depends on the shape or geometry you wish to modify. Below are some examples:
  1. Changing or moving a circular feature: Select the surface, then right-click and choose a command from the context menu to modify it.
  2. Adjusting the length of a shape: Use the TriBall or drag the handles to extend it.

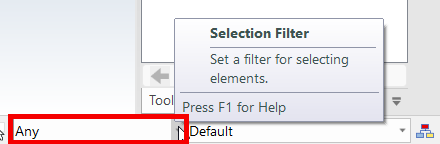

  3. If you need to select multiple surfaces, using the Selection Filter makes the process easier.



Please refer to the video below.

IC-050
