Project some parts into 2D with imaginary lines
It changes line type of some In the 2D assembly drawing, in addition to the main design data, it want to may be expressed in line types (imagination lines) other than solid lines.
Using the 3D Configuration function, it can project to be divided into the main design data and only layout data such as workpieces.
After, by aligning the position, data that is only arranged can be expressed in imaginary lines such as two-point chain lines.arts.
Procedures:
[1] Create Configuration that specific parts only were displayed. ※3D Scene
[2] On the "Configurations" dialog, check the properties for [Track suppression…] and [Configurations stores position of…].

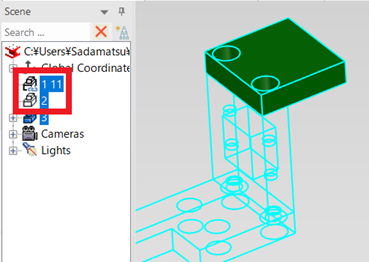

[3] Open each configuration and "Suppress" the parts you want to hide in 3D Scene.

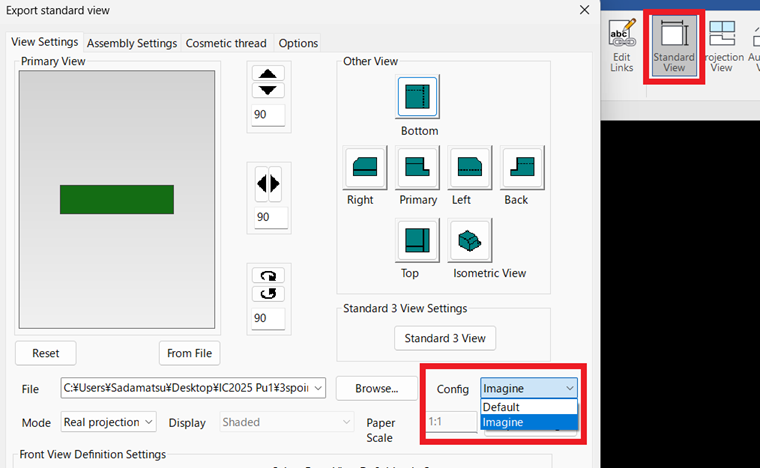

[4] Project each display configuration onto the CAXA Draft.

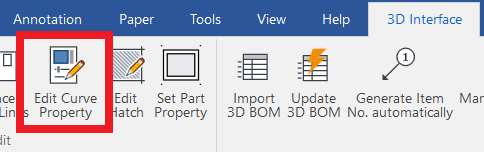

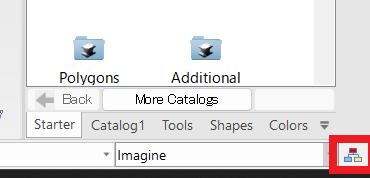

[5] Change the line type in "Edit Curve Property" in the 3D interface tab.
[6] Copy the line type changed parts [Copy with Base Point] on the "Common" tab.
[7] Click "Paste" on the "Common" tab. Select base point of other parts.
[8] Remove the original imaginary line parts that are no longer needed.
Please refer to the video below.
