This section explains how to open [CADENAS] for IronCAD from IRONCAD and continuously transfer model data to a scene.


Procedure:

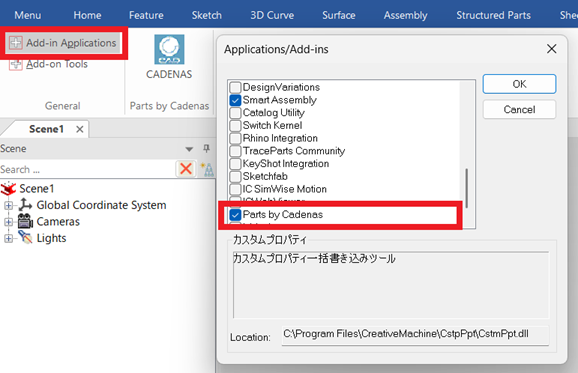

[1] When the [Add-In Applications] window of [Add-Ins] tab appears, check [Parts by Cadenas] to enable it, then click [OK].


[2] Click the [CADENAS] icon.
The screen shown below will appear, and CADENAS will launch (please note that it may take some time to start).

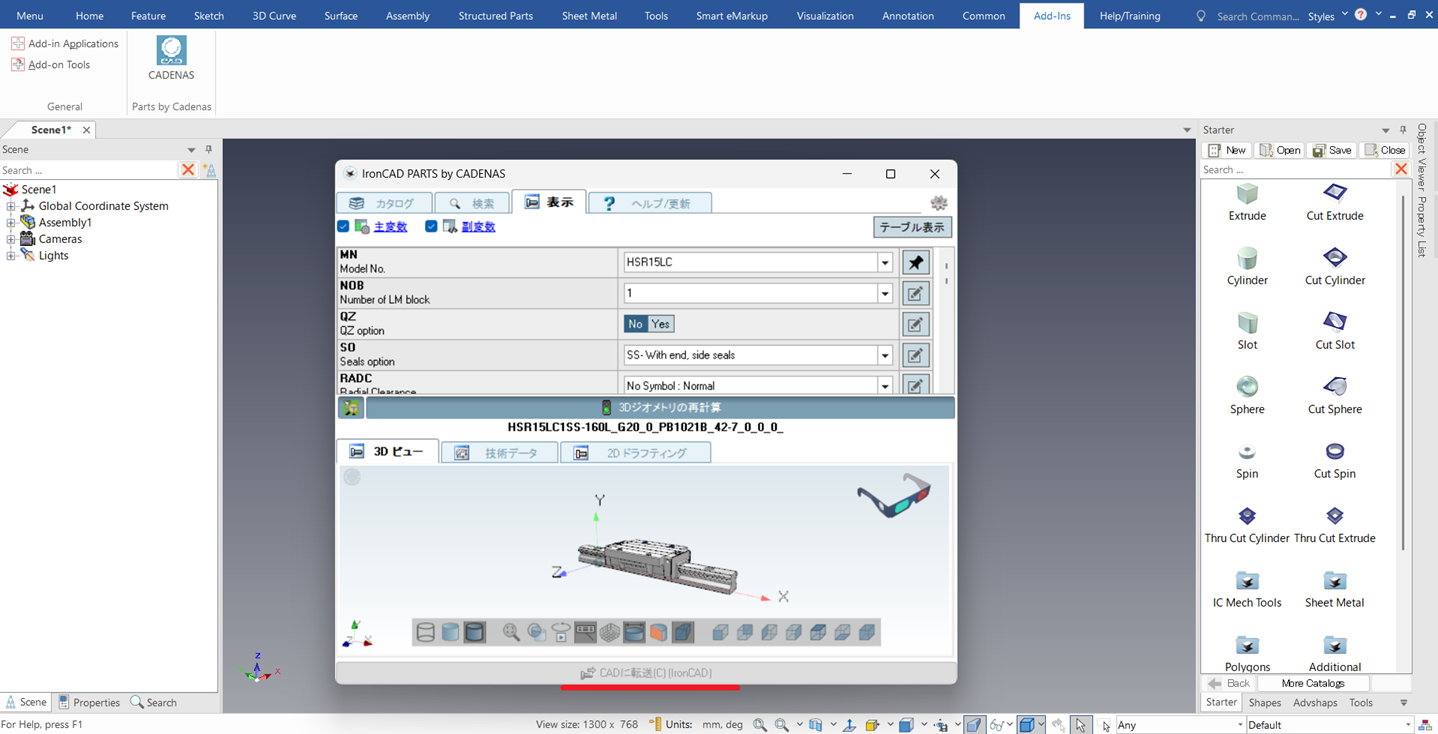

[3] After launching, the dialog shown below will appear.
You can either select from the [Catalog] or use the search function.


[4] To perform a search, click the [Search] tab, enter a search keyword, and click [Search] to begin searching.


[5] When the search is complete, the results will appear in the red box area as shown below.


[6] Double-click on the product selected in the red box area to switch to the screen shown below, where you can configure detailed settings.

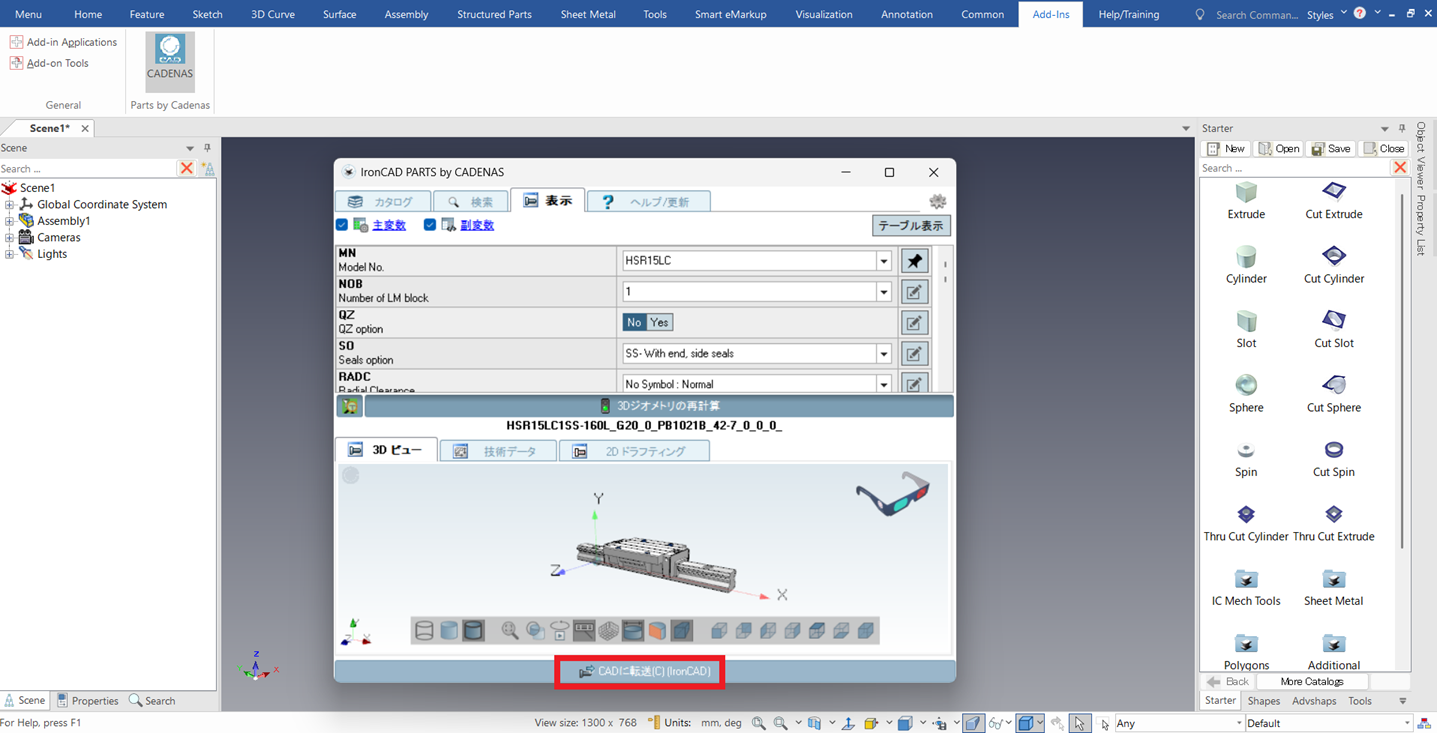

After setting the details, click [Transfer to CAD] to transfer the model data to the currently open scene.


[7] Once a transfer is complete, the [Transfer to CAD] button will be grayed out and cannot be clicked again.


[8] To perform continuous (additional) data transfers, re-click the [CADENAS] icon.


[9] The [Transfer to CAD] button will become clickable again.
To transfer data continuously, repeat the steps above.
