Create an [Auto Hole List]

Create an [Auto Hole List]

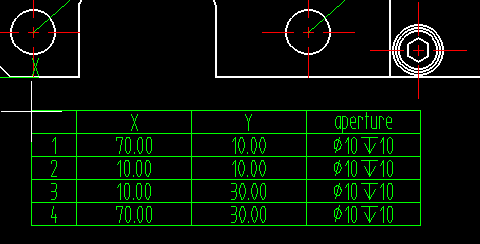

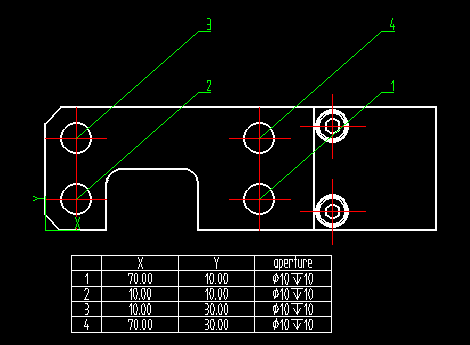

This section explains how to generate a table listing the X and Y coordinates of holes measured from a reference point.

Procedure:

[1] Go to the [Annotations] tab → [Coord] group → click [Auto Hole List].

[2] Pick a line as X and Y axis from view.
Select a line in the projection view for the X direction, then another for the Y direction, in that order.

[4] Select the holes. (Multiple selections are allowed)

[5] Right-click to confirm, and place the list.


Notes
  1. You can select multiple holes at once by left-clicking and dragging to enclose them.
  1. To exclude specific holes, hold the Shift key and click on the holes to deselect them.

Please refer to the video below.

CA-040
