Creating Grooves on a Cylindrical Surface Using Wrap Emboss
This section explains how to create evenly spaced radial grooves on the side surface of a cylindrical shape.
Procedure:
[1] Check the circumference length of the cylinder.
[2] Go to the [Sketch] tab and create sketch line that match the circumference length.

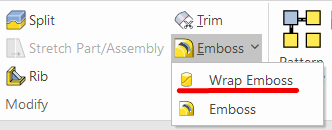

[3] Click [Wrap Emboss] from the [Feature] tab.
[4] Create the grooves.
Curve Type of Wrap : Feature
Curve Type of Wrap : Feature
Feature : created cross-section
Face : Face of Cylinder
[5] Click [OK].
Please refer to the video below.
IC-121
