Follow the hole and place the bolts - Assembly Array -

Follow the hole and place the bolts - Assembly Array -

This section explains how to place bolts parallel to the edges of a shape. By using this feature, when the base plate shape changes but the bolt pitch remains the same, you can minimize the need to manually reposition the bolts.

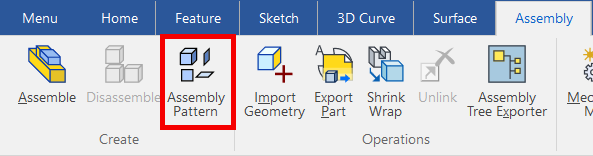

[1] Click [Assembly Pattern] on the [Assembly] tab.


[2] When bolts are placed parallel to the side edges of the base plate, any changes made to the base plate shape will automatically update the bolt positions accordingly.

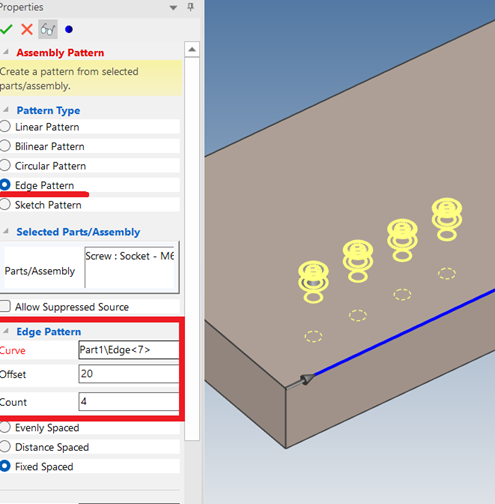

[3] Set Properties.
Pattern Type: Edge Pattern
Curve: Select aligning edge
Offset: Enter Pitch
Count: Number of array


Please refer to the following video.

IC-132
